Taco® 007-ZSF5 Priority Zoning Circulator, 00 Series, Stainless Steel Casing, Standard Flange End Connection, 23 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306814
MPN:007-ZSF5

DESCRIPTION
Taco® 007-ZSF5, Priority Zoning Circulator, Stainless Steel, Series: 00, Model: 007, 23 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.76 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 6-3/8 in D Dimensions, Domestic

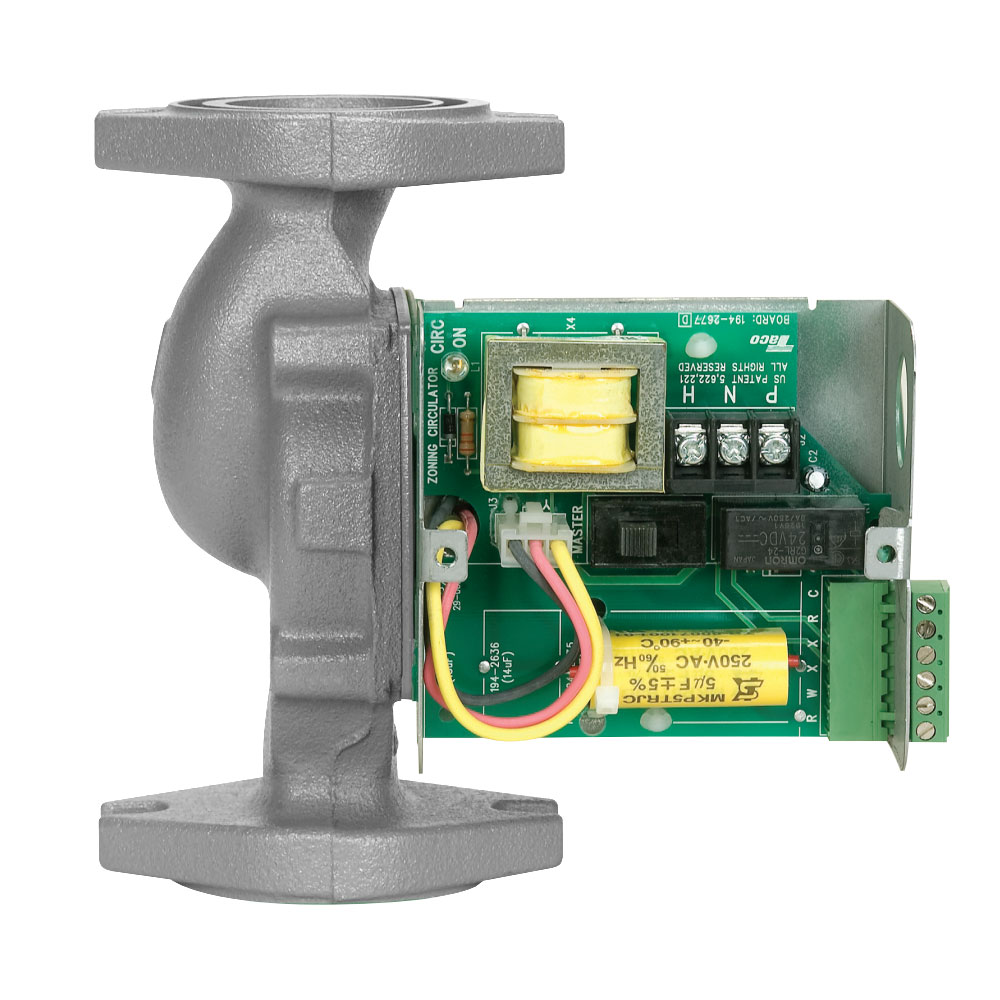

The patented Taco Priority Zoning Circulator combines the reliability of the 00® circulator with the convenience and efficiency of a switching relay. With a built-in transformer, relay and priority switch, all the wiring is done directly to the circulator's PC board, making it ideal for adding a zone or an indirect hot water heater. Now available with optional integral flow check (IFC®).
Taco® 007-ZSF5 Priority Zoning Circulator, 00 Series, Stainless Steel Casing, Standard Flange End Connection, 23 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306814
MPN:007-ZSF5

DESCRIPTION
Taco® 007-ZSF5, Priority Zoning Circulator, Stainless Steel, Series: 00, Model: 007, 23 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.76 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 6-3/8 in D Dimensions, Domestic
The patented Taco Priority Zoning Circulator combines the reliability of the 00® circulator with the convenience and efficiency of a switching relay. With a built-in transformer, relay and priority switch, all the wiring is done directly to the circulator's PC board, making it ideal for adding a zone or an indirect hot water heater. Now available with optional integral flow check (IFC®).
Specifications
Item Features
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
Taco 007-ZSF5 Accessories
CBPN:
15616
MPN:
110-251SF
CBPN:
35289
MPN:
110-252SF
CBPN:
259240
MPN:
110-253SF
CBPN:
33887
MPN:
110-254SF

Taco® SF-050S Shutoff Freedom Flange, 1/2 in, Flanged x Sweat End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/50
CBPN:
307060
MPN:
SF-050S

Taco® SFL-050T Shutoff Freedom Flange, 1/2 in, Flanged x FNPT End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/45/50
CBPN:
307062
MPN:
SFL-050T

Taco® SFL-075S Shutoff Freedom Flange, 3/4 in, Flanged x Sweat End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/50
CBPN:
307063
MPN:
SFL-075S

Taco® SFL-075T Shutoff Freedom Flange, 3/4 in, Flanged x FNPT End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/45/50
CBPN:
307064
MPN:
SFL-075T

Taco® SFL-100S Shutoff Freedom Flange, 1 in, Flanged x Sweat End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/50
CBPN:
307065
MPN:
SFL-100S

Taco® SFL-100T Shutoff Freedom Flange, 1 in, Flanged x FNPT End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/45/50
CBPN:
307066
MPN:
SFL-100T

Taco® SFL-125S Shutoff Freedom Flange, 1-1/4 in, Flanged x Sweat End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/50
CBPN:
307067
MPN:
SFL-125S

Taco® SFL-125T Shutoff Freedom Flange, 1-1/4 in, Flanged x FNPT End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/45/50
CBPN:
307068
MPN:
SFL-125T

Taco® SFL-150S Shutoff Freedom Flange, 1-1/2 in, Flanged x Sweat End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/50
CBPN:
307069
MPN:
SFL-150S

Taco® SFL-150T Shutoff Freedom Flange, 1-1/2 in, Flanged x FNPT End Style, Fits all 00® models (except 0012), 110-113, 2400-10/20/45/50
CBPN:
307070
MPN:
SFL-150T
Taco 007-ZSF5 Spare Parts
CBPN:
35845
MPN:
007-007RP
CBPN:
30190
MPN:
007-045RP
CBPN:
113219
MPN:
008-005RP
