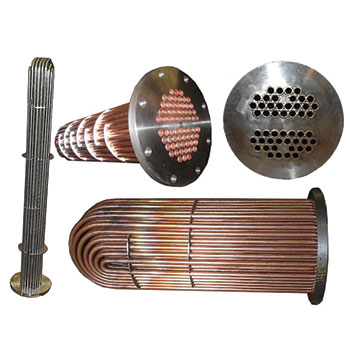

REPLACEMENT TUBE BUNDLES & NEW APPLICATION TUBE BUNDLES
Tube bundles are assemblies of multiple tubes secured together within a shell that serve as the primary medium for efficient heat transfer between two fluids. Heat is transferred between the fluids through the tube walls as hot fluid flows through the tubes and cooler fluid flows around the tubes within the shell.
Through our trusted manufacturing partners, we can source both direct replacement tube bundles and bundles for new applications.
Commonly Used In:
Heat Exchangers, Boilers, Condensers, and Cooling Systems
Common Applications:
Chemical Processing, Power Generation, Refineries, Pharmaceuticals, HVAC systems, and more
- 4" nominal to 60" nominal
- U-Tube, or Straight Tube (Fixed Tubesheet or Floating Tubesheet)
- Enhanced Tube, Low-Fin, Lo-Fin, Integral Tube Bundles (U-Tube or Straight Tube)
- Tank Heater Tube Bundles
- Fuel Oil Heater Tube Bundles
- Double Wall Vented Tube Bundles
- Heads & Bonnets
- Tank Collars & Nozzles
- A.S.M.E. Stamping Available
- Available with Standard & Specialty Alloys:
Carbon Steel
Copper
Titanium
Aluminum
AL-6XN
Stainless Steel:
304/L, 316/L,
317/L, 321L
Inconel®
Incolony®
Cupro-Nickel:
9/10, 80/20,
70/30
Nickel 200
Monel® 400
Admiralty Brass
Duplex
Alloy 20
Hastelloy®:
B & C
Contact us about your tube bundle questions or comments:
We Can Cross Reference TUBE Bundles From The Following Manufacturers:
|
|
|

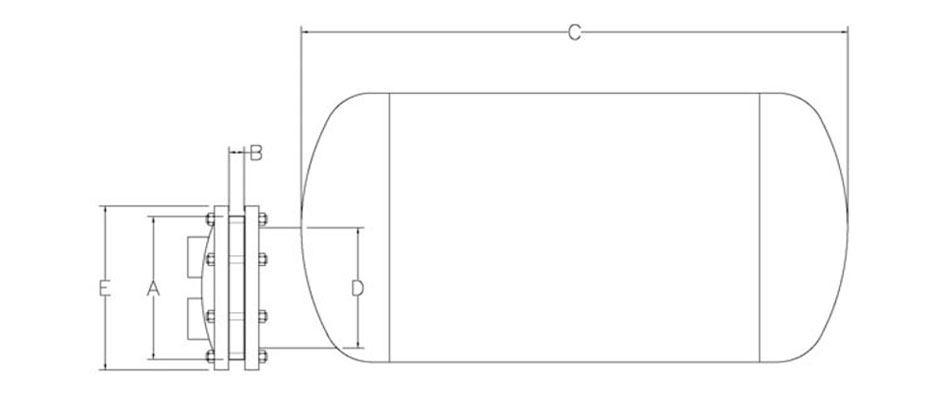

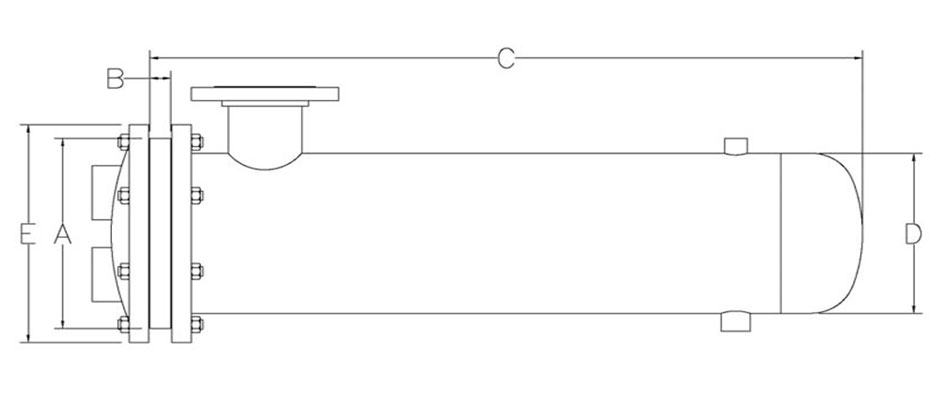

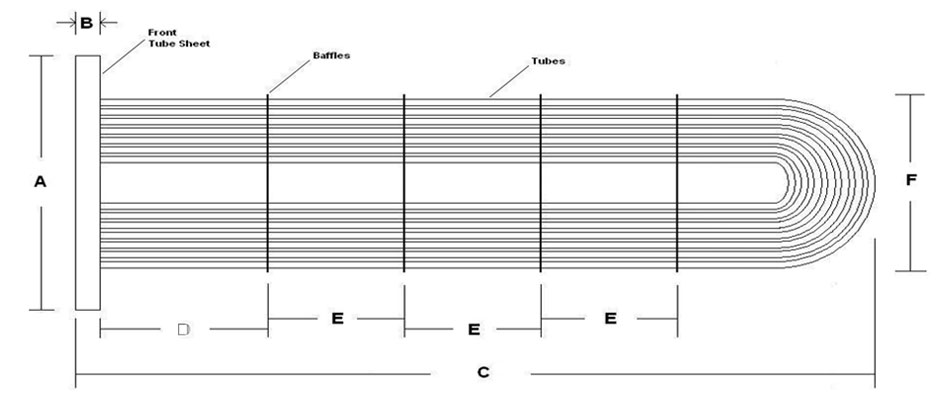

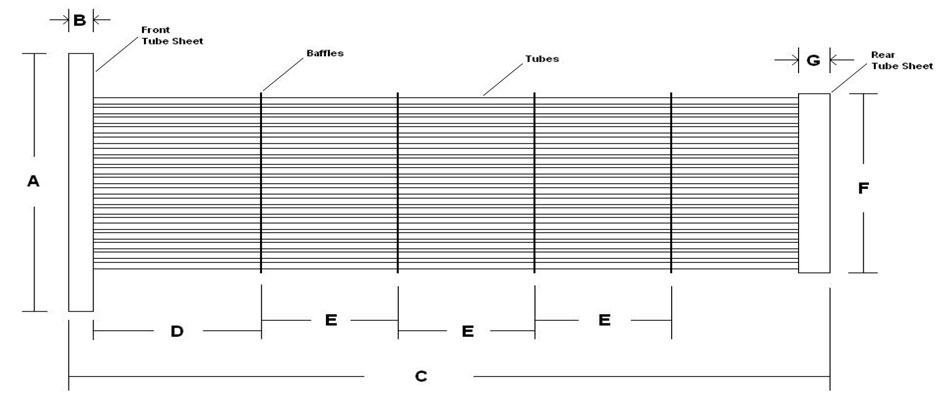

Not Sure How to Measure a Tube Bundle?
Check out our tube bundle dimension forms below!

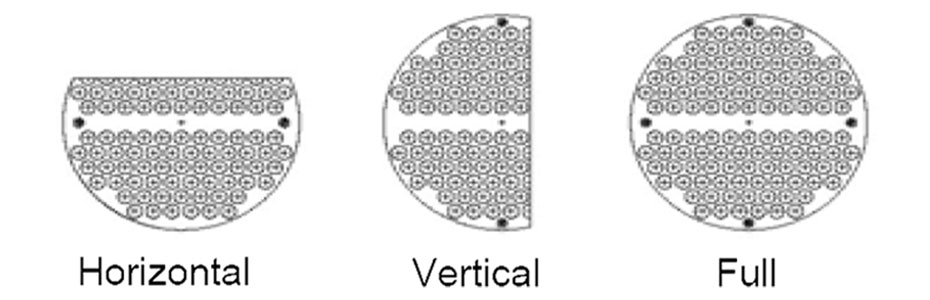

BAFFLE CUT ORIENTATION
(circle one)

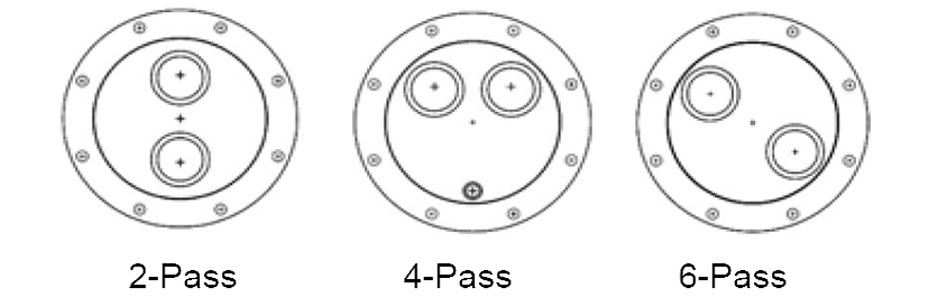

NUMBER OF BAFFLES:NUMBER OF PASSES
(circle one)

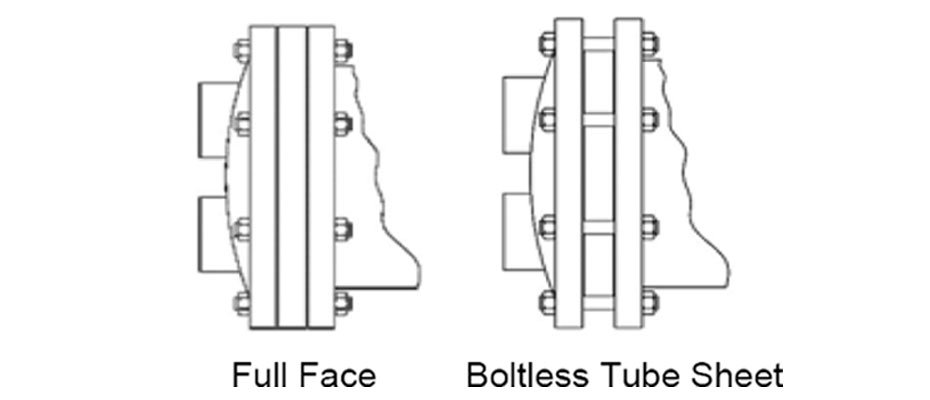

BOLTING INFORMATION
