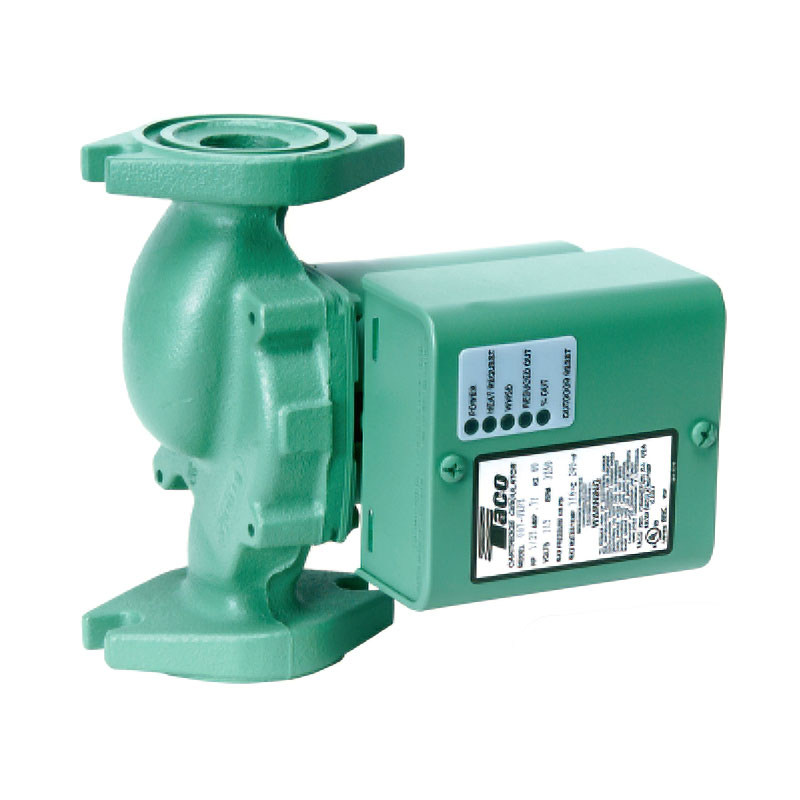

Taco® 007-VSF5 Cast Iron Variable Speed Setpoint Circulator, 00 Series, Cast Iron Casing, Stands Flange End Connection, 23 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306811
MPN:007-VSF5
DESCRIPTION
Taco® 007-VSF5, Variable Speed Setpoint Circulator, Cast Iron, Series: 00, 23 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 6-3/8 in D Dimensions, Domestic
Taco Variable Speed Circulators combine the advanced features of our external variable speed controls with the reliability and convenience of our “00” Cartridge Circulators. Now, all the wiring for power and sensors is done directly to the circulator. Checking functionality is as easy as checking the LED status panel. Choose the Variable Speed Circulator that’s right for you – Outdoor Reset, Setpoint, or Variable Voltage – then upgrade temperature control, flow control, equipment protection, indoor comfort, and total system efficiency with our convenient all-in-one package.
Taco® 007-VSF5 Cast Iron Variable Speed Setpoint Circulator, 00 Series, Cast Iron Casing, Stands Flange End Connection, 23 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306811
MPN:007-VSF5
DESCRIPTION
Taco® 007-VSF5, Variable Speed Setpoint Circulator, Cast Iron, Series: 00, 23 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 6-3/8 in D Dimensions, Domestic
Taco Variable Speed Circulators combine the advanced features of our external variable speed controls with the reliability and convenience of our “00” Cartridge Circulators. Now, all the wiring for power and sensors is done directly to the circulator. Checking functionality is as easy as checking the LED status panel. Choose the Variable Speed Circulator that’s right for you – Outdoor Reset, Setpoint, or Variable Voltage – then upgrade temperature control, flow control, equipment protection, indoor comfort, and total system efficiency with our convenient all-in-one package.
Specifications
Item Features
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
