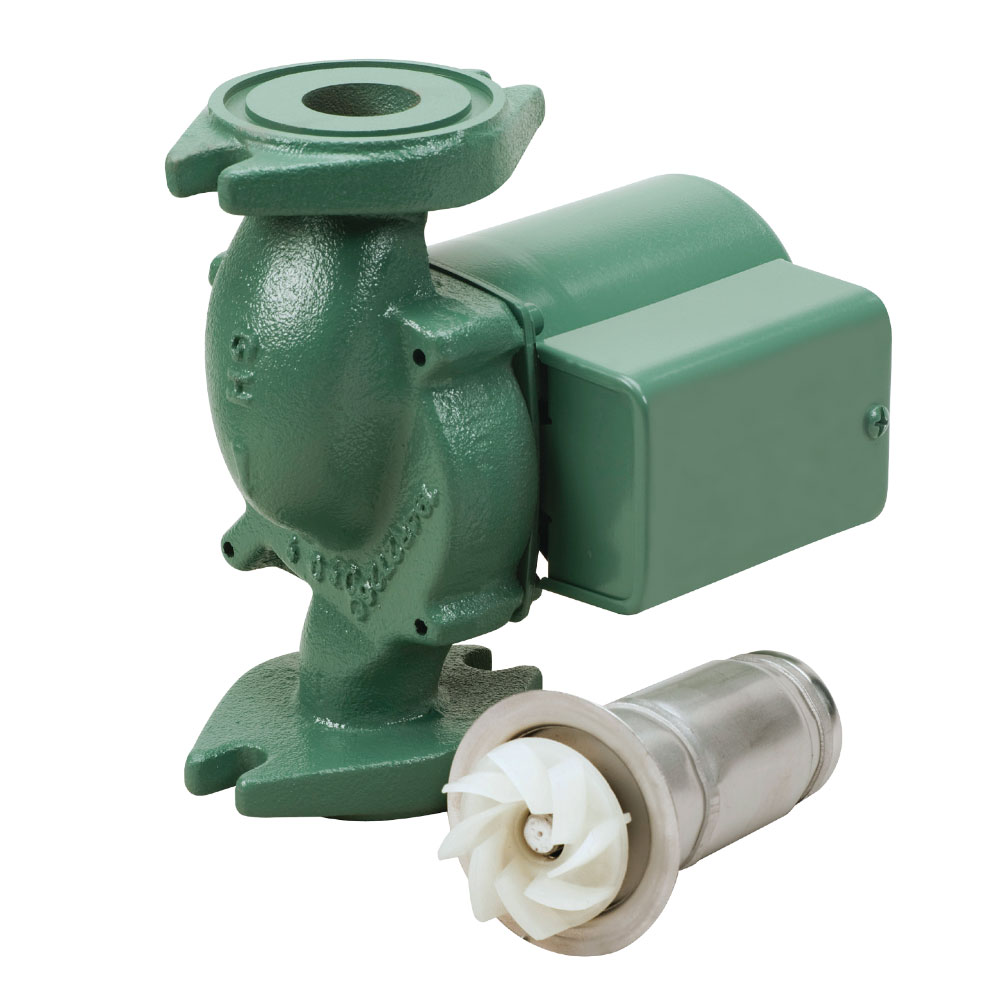

Taco® 007-F5 Cartridge Circulator, 00 Series, Cast Iron Casing, Standard Flange End Connection, 23 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 44974
MPN:007-F5
Price:
$165.35 / EA
DESCRIPTION
Taco® 007-F5, Cartridge Circulator, Cast Iron, Series: 00, Model: 007, 23 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 6-3/8 in D Dimensions
The Taco 007 Cartridge Circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.
Taco® 007-F5 Cartridge Circulator, 00 Series, Cast Iron Casing, Standard Flange End Connection, 23 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 44974
MPN:007-F5
Price:
$165.35 / EA
DESCRIPTION
Taco® 007-F5, Cartridge Circulator, Cast Iron, Series: 00, Model: 007, 23 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 4-3/4 in W x 6-3/8 in D Dimensions
The Taco 007 Cartridge Circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.
Specifications
Brand: Taco®
Weight: 8 lbs
Bearing Type: Carbon
Impeller Type: Non-Metallic
Temperature Rating: 40 to 230 deg F
Flow Rate: 23 gpm
Inlet Size: 3/4, 1-1/4, 1, 1-1/2 in
Outlet Size: 3/4, 1-1/4, 1, 1-1/2 in
Voltage Rating: 115 V
Phase: 1
Amperage Rating: 0.74 A
Dimensions: 6-3/8 in H x 4-3/4 in W x 6-3/8 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 10 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: Flange
Power Rating: 1/25 hp
Series: 00
Type: Cast Iron
Includes: Flange Gaskets
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Country of Origin: US
Standards and Approvals: UL-CUS
Item Features
- Cast Iron or Stainless Steel Construction
- Direct Drive-Low Power Consumption
- No Mechanical Seal
- Quiet, Efficient Operation
- Self Lubricating
- Standard High Capacity Output-Compact Design
- Unique Replaceable Cartridge Design-Field Serviceable
- Unmatched Reliability-Maintenance Free
