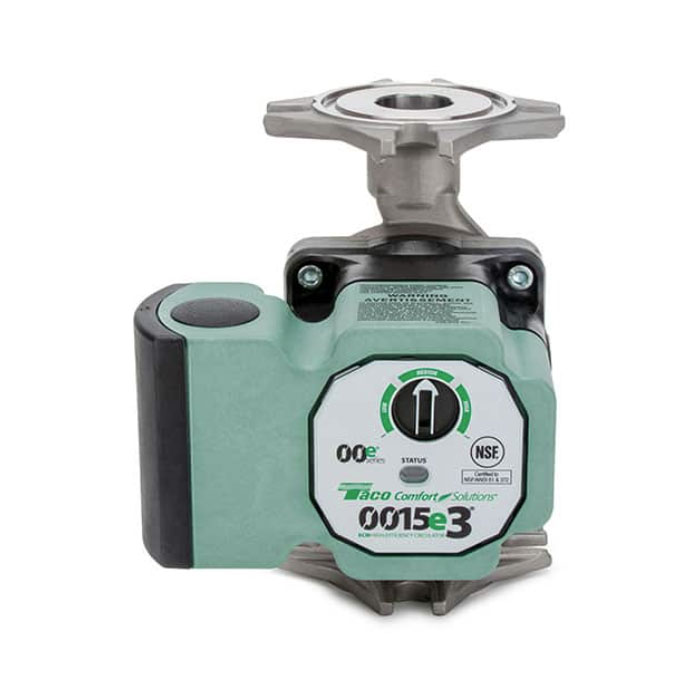

Taco® 0015e3-SF4 ECM High-Efficiency Circulator, 00e Series, Stainless Steel Casing, Universal Flange End Connection, 16 gpm Flow Rate, 120 V, 1 Phase, Domestic
CBPN: 306758
MPN:0015e3-SF4
DESCRIPTION
Taco® 0015e3-SF4, Variable Speed Circulator, Stainless Steel, Series: 00e, 16 gpm Flow Rate, 18 ft Maximum Head, 120 V, 0.54 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 1590 to 4830 rpm Motor, 150 psi Case, Composite Impeller, Universal 4-Bolt Flange Mounting, 36 to 230 deg F, Carbon Bearing, 6-3/8 in H x 6 in W x 6 in D Dimensions
The 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 0015e3 is not suitable for chilled water systems.
Taco® 0015e3-SF4 ECM High-Efficiency Circulator, 00e Series, Stainless Steel Casing, Universal Flange End Connection, 16 gpm Flow Rate, 120 V, 1 Phase, Domestic
CBPN: 306758
MPN:0015e3-SF4
DESCRIPTION
Taco® 0015e3-SF4, Variable Speed Circulator, Stainless Steel, Series: 00e, 16 gpm Flow Rate, 18 ft Maximum Head, 120 V, 0.54 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 1590 to 4830 rpm Motor, 150 psi Case, Composite Impeller, Universal 4-Bolt Flange Mounting, 36 to 230 deg F, Carbon Bearing, 6-3/8 in H x 6 in W x 6 in D Dimensions
The 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 0015e3 is not suitable for chilled water systems.
Specifications
Item Features
- Replaces all 3-speed hydronic circulators in its class
- High-efficiency ECM motor uses up to 85% less electricity
- SureStart® automatic unblocking and air purging mode
- Green Mode active system monitoring and automatic power optimization
- Nut-grabber feature on flanges for easier fit-up
- Double insulated - No ground wire required
- Whisper quiet operation
