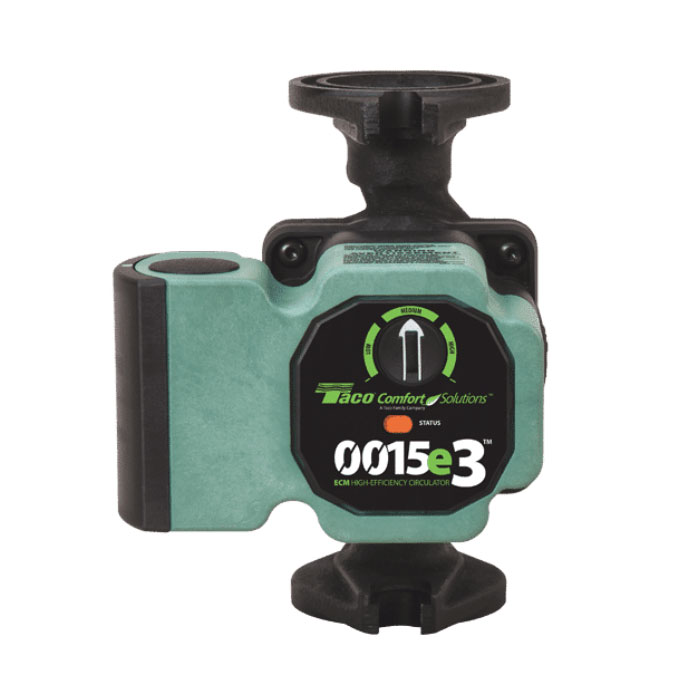

Taco® 0015e3-2F2 ECM High-Efficiency Circulator, 00e Series, Cast Iron Casing, Standard Flange End Connection, 16 gpm Flow Rate, 120 V, 1 Phase, Domestic
CBPN: 306756
MPN:0015e3-2F2
DESCRIPTION
Taco® 0015e3-2F2, Variable Speed Circulator, Cast Iron, Series: 00e, 16 gpm Flow Rate, 18 ft Maximum Head, 120 V, 0.54 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 1590 to 4830 rpm Motor, 125 psi Case, Composite Impeller, Standard 2-Bolt Flange Mounting, 36 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 6 in D Dimensions
The Taco 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 0015e3 is not suitable for chilled water systems.
Taco® 0015e3-2F2 ECM High-Efficiency Circulator, 00e Series, Cast Iron Casing, Standard Flange End Connection, 16 gpm Flow Rate, 120 V, 1 Phase, Domestic
CBPN: 306756
MPN:0015e3-2F2
DESCRIPTION
Taco® 0015e3-2F2, Variable Speed Circulator, Cast Iron, Series: 00e, 16 gpm Flow Rate, 18 ft Maximum Head, 120 V, 0.54 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 1590 to 4830 rpm Motor, 125 psi Case, Composite Impeller, Standard 2-Bolt Flange Mounting, 36 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 6 in D Dimensions
The Taco 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 0015e3 is not suitable for chilled water systems.
Specifications
Item Features
- Replaces all 3-speed hydronic circulators in its class
- High-efficiency ECM motor uses up to 85% less electricity
- SureStart® automatic unblocking and air purging mode
- Green Mode active system monitoring and automatic power optimization
- Nut-grabber feature on flanges for easier fit-up
- Double insulated - No ground wire required
- Whisper quiet operation

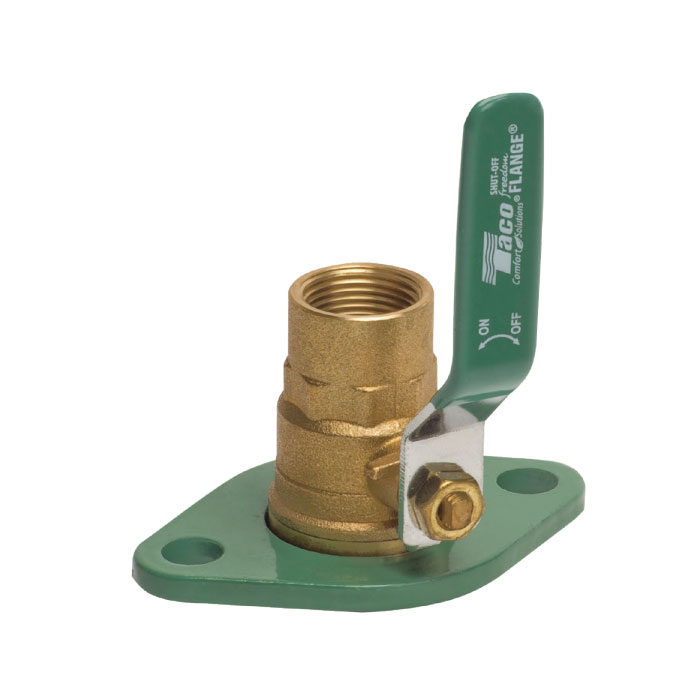

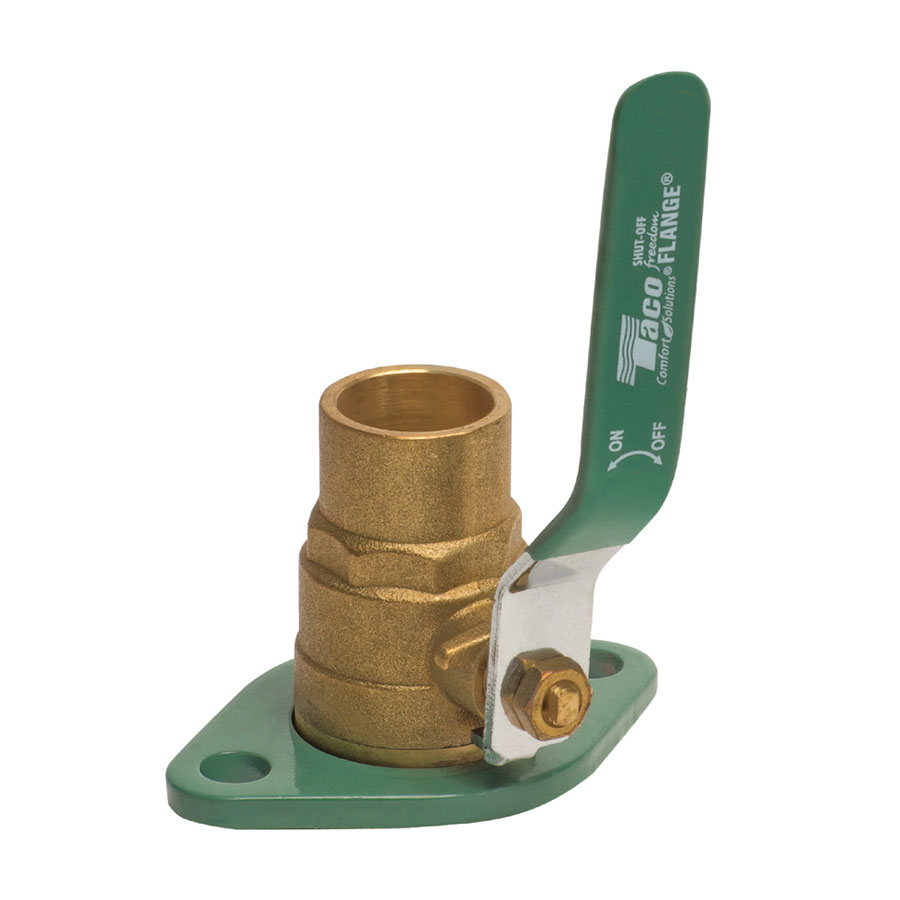

Taco 0015E3-2F2 Accessories
CBPN:
61213
MPN:
110-251F
CBPN:
25047
MPN:
110-252F
CBPN:
306834
MPN:
110-253F
CBPN:
306835
MPN:
110-254F
CBPN:
307060
MPN:
SF-050S
CBPN:
307062
MPN:
SFL-050T
CBPN:
307063
MPN:
SFL-075S
CBPN:
307064
MPN:
SFL-075T
CBPN:
307065
MPN:
SFL-100S
CBPN:
307066
MPN:
SFL-100T
CBPN:
307067
MPN:
SFL-125S
CBPN:
307068
MPN:
SFL-125T
CBPN:
307069
MPN:
SFL-150S
CBPN:
307070
MPN:
SFL-150T
Taco 0015E3-2F2 Spare Parts
CBPN:
307122
MPN:
0010-025RP
CBPN:
35845
MPN:
007-007RP
CBPN:
307181
MPN:
198-213RP
