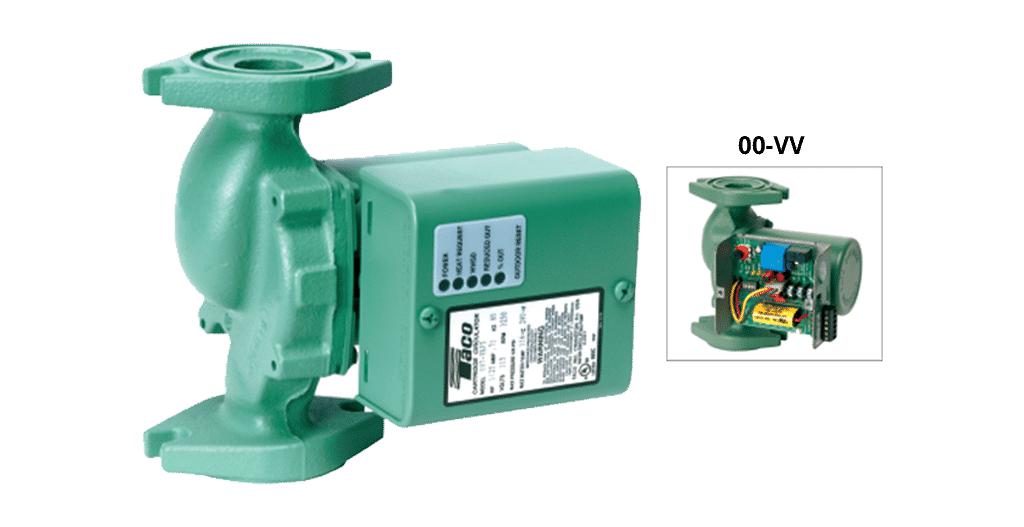

Taco® 0013-VVF3 Variable Speed Variable Voltage Cartridge Circulator, 00 Series, Cast Iron Casing, Rotated Standard Flange End Connection, 34 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306753
MPN:0013-VVF3
DESCRIPTION
Taco® 0013-VVF3, Variable Speed Variable Voltage Cartridge Circulator Pump, Cast Iron, Series: 00, Model: 0013, 34 gpm Flow Rate, 33 ft Maximum Head, 1/6 hp Power, 115 V, 2 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Rotated Standard Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-1/2 in H x 6 in W x 7-1/2 in D Dimensions, Domestic
The Variable Voltage version of the Variable Speed “00” Circulator is designed to operate the pump at different speeds based on an externally generated analog voltage signal input. Its reliable operation, ease of installation and integration to DDC or building management systems allows for a wide variety of HVAC applications, such as maintaining a pressure differential or a setpoint temperature. The control accepts a 0-10 V(dc), 0-20 mA, 2 10 V(dc), or 4-20mA signal.
Taco® 0013-VVF3 Variable Speed Variable Voltage Cartridge Circulator, 00 Series, Cast Iron Casing, Rotated Standard Flange End Connection, 34 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306753
MPN:0013-VVF3
DESCRIPTION
Taco® 0013-VVF3, Variable Speed Variable Voltage Cartridge Circulator Pump, Cast Iron, Series: 00, Model: 0013, 34 gpm Flow Rate, 33 ft Maximum Head, 1/6 hp Power, 115 V, 2 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Rotated Standard Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-1/2 in H x 6 in W x 7-1/2 in D Dimensions, Domestic
The Variable Voltage version of the Variable Speed “00” Circulator is designed to operate the pump at different speeds based on an externally generated analog voltage signal input. Its reliable operation, ease of installation and integration to DDC or building management systems allows for a wide variety of HVAC applications, such as maintaining a pressure differential or a setpoint temperature. The control accepts a 0-10 V(dc), 0-20 mA, 2 10 V(dc), or 4-20mA signal.
Specifications
Item Features
- Exclusive ACB Anti-Condensate Baffle with Ambient Air Flow-Protects motor windings against condensate buildup
- High Velocity Performance
- Compact design
- Quiet, Efficient operation
- Direct Drive-Low Power consumption
- Unique Replaceable Cartridge design-field serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched reliability - Maintenance free
- Cast Iron or Stainless Steel Construction
- 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Connection Sizes
