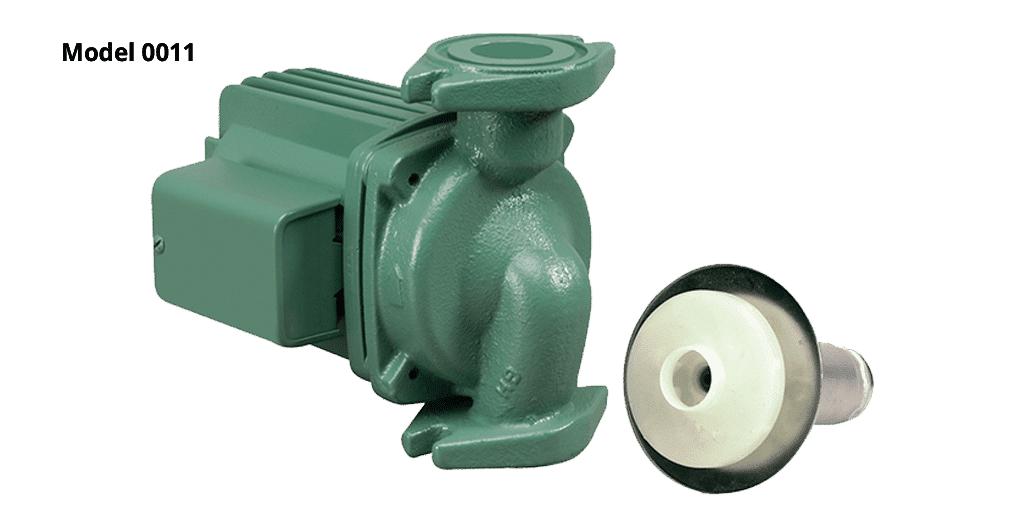

Taco® 0011-F4Y 00 Cast Iron Cartridge Circulator, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet x 3/4, 1-1/4, 1, 1-1/2 in Outlet, 230 V, 1 Phase , Domestic
CBPN: 306737
MPN:0011-F4Y
DESCRIPTION
Taco® 0011-F4Y, Cartridge Circulator, Cast Iron, Series: 00, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 3/4, 1-1/4, 1, 1-1/2 in Outlet, 31 ft Maximum Head, 1/8 hp Power, 230 V, 1.76 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-1/2 in H x 5-5/8 in W x 7-1/2 in D Dimensions, Domestic
The Taco 0011 is specifically designed for high head / medium flow applications in large residential or light commercial closed loop hydronic heating and chilled water cooling systems. Ideal for high pressure drop boilers, fan coil units, heat exchangers, large radiant heating and heat recovery/geothermal systems. The Stainless Steel 0011 should be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0011 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.
Taco® 0011-F4Y 00 Cast Iron Cartridge Circulator, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet x 3/4, 1-1/4, 1, 1-1/2 in Outlet, 230 V, 1 Phase , Domestic
CBPN: 306737
MPN:0011-F4Y
DESCRIPTION
Taco® 0011-F4Y, Cartridge Circulator, Cast Iron, Series: 00, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 3/4, 1-1/4, 1, 1-1/2 in Outlet, 31 ft Maximum Head, 1/8 hp Power, 230 V, 1.76 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-1/2 in H x 5-5/8 in W x 7-1/2 in D Dimensions, Domestic
The Taco 0011 is specifically designed for high head / medium flow applications in large residential or light commercial closed loop hydronic heating and chilled water cooling systems. Ideal for high pressure drop boilers, fan coil units, heat exchangers, large radiant heating and heat recovery/geothermal systems. The Stainless Steel 0011 should be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0011 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs.
Specifications
Item Features
- Exclusive ACB Anti-condensate baffle with ambient air flow-Protects motor windings against condensate buildup
- High velocity performance, compact design
- Quiet, Efficient operation
- Direct drive-Low power consumption
- Unique replaceable cartridge design, field serviceable
- Self lubricating
- No mechanical seal
- Unmatched reliability-maintenance free
