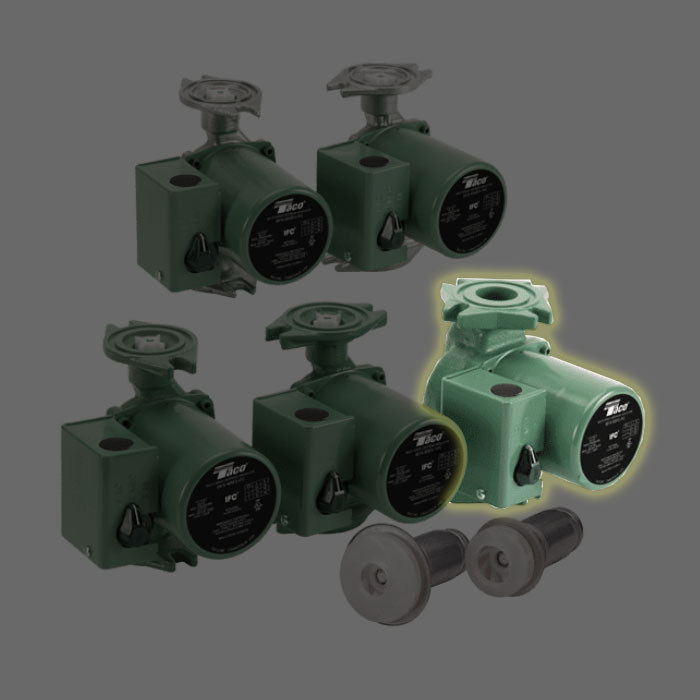

Taco® 0010-MSF2-IFC 3-Speed Cartridge Circulator with Integral Flow Check, 00 Series, Cast Iron Casing, Universal Flange End Connection, 31 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306733
MPN:0010-MSF2-IFC
DESCRIPTION
Taco® 0010-MSF2-IFC, 3-Speed Cartridge Circulator with Integral Flow Check, Cast Iron, Series: 00, 31 gpm Flow Rate, 11 ft Maximum Head, 1/20 hp Power, 115 V, 0.57 Amps at Speed 1, 0.79 Amps at Speed 2 & 0.91 Amps at Speed 3, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Universal 4-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 6-11/16 in W x 6-11/16 in L x 5-3/8 in D Dimensions
The 0010 3-Speed Service pump is designed as an ideal replacement circulator for service contractors to use on any emergency "no-heat" call. The 0010 3-Speed replaces most commonly used circulators. Simply install it and set the speed to match the original pump performance. The handy new four bolt flange matches up to any pump regardless of style, type or age.
Taco® 0010-MSF2-IFC 3-Speed Cartridge Circulator with Integral Flow Check, 00 Series, Cast Iron Casing, Universal Flange End Connection, 31 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306733
MPN:0010-MSF2-IFC
DESCRIPTION
Taco® 0010-MSF2-IFC, 3-Speed Cartridge Circulator with Integral Flow Check, Cast Iron, Series: 00, 31 gpm Flow Rate, 11 ft Maximum Head, 1/20 hp Power, 115 V, 0.57 Amps at Speed 1, 0.79 Amps at Speed 2 & 0.91 Amps at Speed 3, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Universal 4-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 6-11/16 in W x 6-11/16 in L x 5-3/8 in D Dimensions
The 0010 3-Speed Service pump is designed as an ideal replacement circulator for service contractors to use on any emergency "no-heat" call. The 0010 3-Speed replaces most commonly used circulators. Simply install it and set the speed to match the original pump performance. The handy new four bolt flange matches up to any pump regardless of style, type or age.
Specifications
Item Features
- 3-Speed Switch
- 4-bolt universal flange (0010 only)
- Cast Iron or Stainless Steel, flanged construction
- Fine tune to system requirements
- Heavy duty construction for longer life
- Highest performance & starting torque in class
- Quiet, efficient operation
- Removable high-flow Integral Flow Check Prevents gravity flow Reduces installation costs Improves pump performance
- Replaceable cartridge design
- Self lubricating, no mechanical seal
- Wide range of applications
Taco 0010-MSF2-IFC Accessories
CBPN:
61213
MPN:
110-251F
CBPN:
25047
MPN:
110-252F
CBPN:
306834
MPN:
110-253F
CBPN:
306835
MPN:
110-254F
CBPN:
307060
MPN:
SF-050S
CBPN:
307062
MPN:
SFL-050T
CBPN:
307063
MPN:
SFL-075S
CBPN:
307064
MPN:
SFL-075T
CBPN:
307065
MPN:
SFL-100S
CBPN:
307066
MPN:
SFL-100T
CBPN:
307067
MPN:
SFL-125S
CBPN:
307068
MPN:
SFL-125T
CBPN:
307069
MPN:
SFL-150S
CBPN:
307070
MPN:
SFL-150T
Taco 0010-MSF2-IFC Spare Parts
CBPN:
307123
MPN:
0010-034RP
CBPN:
307128
MPN:
0012-021RP
CBPN:
35845
MPN:
007-007RP
