WATTS® 0391010

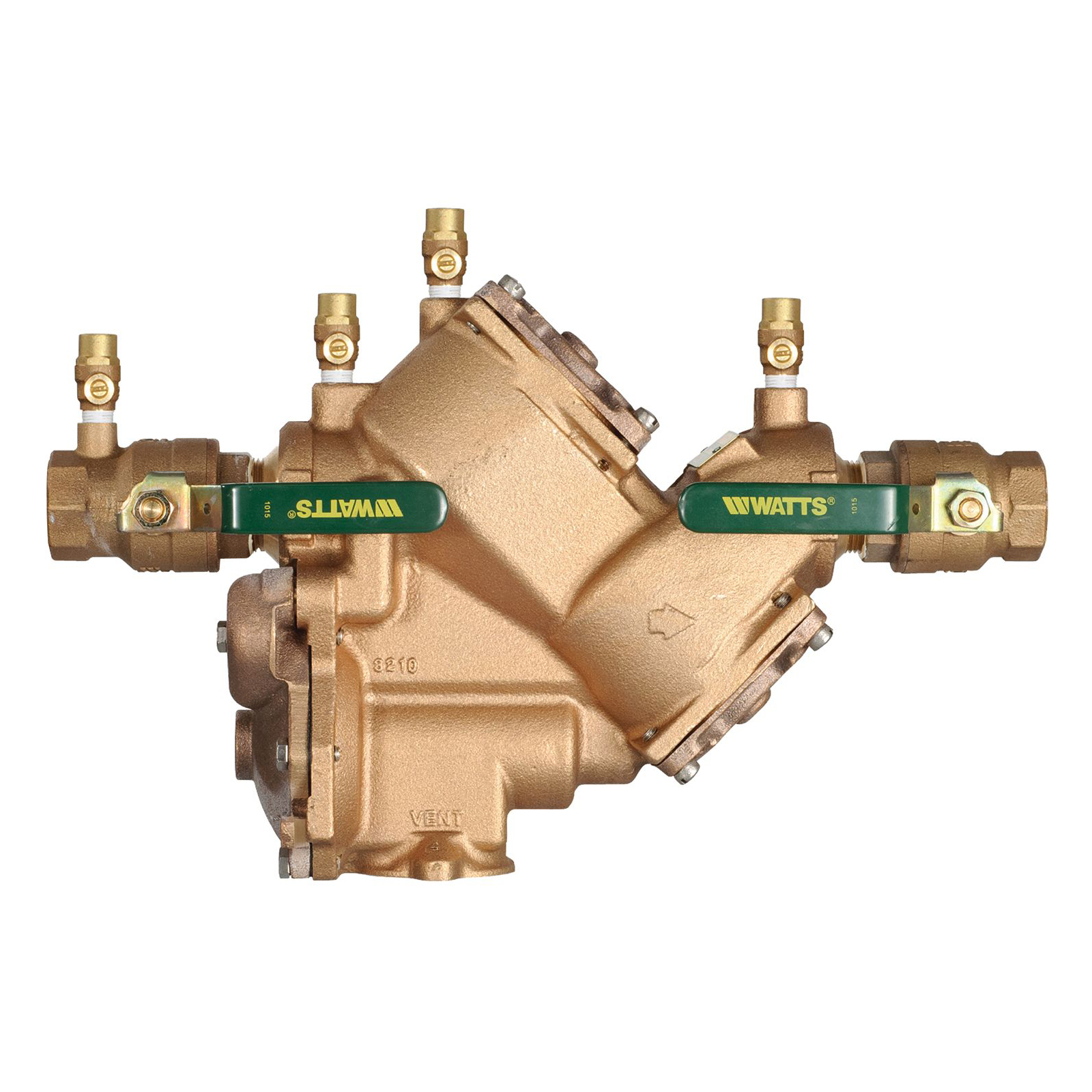

WATTS® 0391010 LF909 Reduced Pressure Zone Assembly, 1-1/4 in Nominal, MNPT End Style, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Domestic

CBPN:180250

UPC:098268051193

MPN:0391010

Price:
$2325.74 / EA
Availability Information
Prop 65:

DESCRIPTION

WATTS® Reduced Pressure Zone Assembly, Series: LF909, 1-1/4 in Nominal, MNPT, 175 psi, 33 to 110 deg F, Quarter-Turn Ball Valve, Full Port, Cast Copper Silicon Alloy Body, 5-1/4 in W, Domestic

Series LF909 Lead Free Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphon age and or backpressure. It consists of a Lead Free Cast Copper Silicon Alloy body construction, bronze ball valve shutoffs and bronze test cocks. Series LF909 features a air-in/water-out design principle for protection during emergency combined back siphon age and backpressure conditions. It is ideal for health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.

WATTS® 0391010 LF909 Reduced Pressure Zone Assembly, 1-1/4 in Nominal, MNPT End Style, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Domestic

CBPN:180250

MPN:0391010

UPC:098268051193

Price:
$2325.74 / EA
Availability Information

Prop 65:
Watts logo

DESCRIPTION

WATTS® Reduced Pressure Zone Assembly, Series: LF909, 1-1/4 in Nominal, MNPT, 175 psi, 33 to 110 deg F, Quarter-Turn Ball Valve, Full Port, Cast Copper Silicon Alloy Body, 5-1/4 in W, Domestic

Series LF909 Lead Free Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphon age and or backpressure. It consists of a Lead Free Cast Copper Silicon Alloy body construction, bronze ball valve shutoffs and bronze test cocks. Series LF909 features a air-in/water-out design principle for protection during emergency combined back siphon age and backpressure conditions. It is ideal for health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.

Specifications

BrandWATTS®
Body MaterialCast Copper Silicon Alloy
Domestic/ImportDomestic
End StyleMNPT
Nominal Size1-1/4 in
Pressure Rating175 psi
SeriesLF909
Temperature Rating33 to 110 deg F
Dimensions5-1/4 in W
Port TypeFull
Ball Valve/Gate Valve TypeQuarter-Turn Ball Valve

Item Features

  • Modular compact design
  • Replaceable seats
  • Compact for easy of installation
  • Horizontal or vertical (up or down) installation on limited sizes only
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
