Titan® BS86S0400 BS86-SS Simplex Basket Strainer With Stainless Steel Bolted Cover, 4 in Nominal, 11-3/4 in OAL, ANSI 300 Flange Connection, Stainless Steel, Cover Gasket Spiral Wound SS
CBPN: 251112
MPN:BS86S0400
Price:
$6132.93 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION

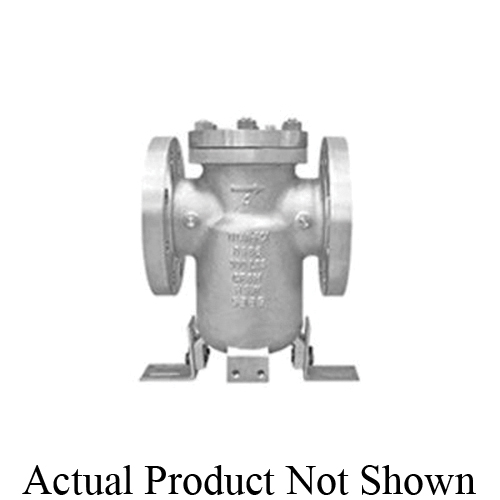

Titan® Simplex Basket Strainer, Series: BS86-SS, 4 in Nominal, 11-3/4 in Overall Length, ANSI 300 Flanged Connection, Stainless Steel, CF8M Grade
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Titan® BS86S0400 BS86-SS Simplex Basket Strainer With Stainless Steel Bolted Cover, 4 in Nominal, 11-3/4 in OAL, ANSI 300 Flange Connection, Stainless Steel, Cover Gasket Spiral Wound SS
CBPN: 251112
MPN:BS86S0400
Price:
$6132.93 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Titan® Simplex Basket Strainer, Series: BS86-SS, 4 in Nominal, 11-3/4 in Overall Length, ANSI 300 Flanged Connection, Stainless Steel, CF8M Grade
Basket strainers are used to mechanically remove debris in pipelines with a straining element that is shaped like a basket. Basket Strainers are typically used in horizontal pipelines. In most cases, they provide more open area for debris collection than a Y strainer and need less frequent cleaning.
Specifications
Brand: Titan®
Weight: 108 lbs
Nominal Size: 4 in
Material: Stainless Steel
Connection Type: ANSI 300 Flange
Pressure Class: 300 lb
Cover Gasket: Spiral Wound SS
Grade: CF8M
Manufacturer Name: Titan Flow Control
Overall Length: 11-3/4 in
Series: BS86-SS
Application: Chemical, Food and Pharmaceutical Industries
Standards and Approvals: ANSI Class 300 | ANSI/MSS SP-55 | ASME/ANSI B16.5 | ASTM A351 Grade CF8M Body and Cover
Item Features
- Rugged high quality construction: The model BS86 is a heavy duty basket strainer designed with exceptional wall thickness, It is a logical choice for service applications that have higher temperature and pressure requirements
- Pressure loss is minimized by providing a slanted straining element design and straight flow path
- Plugged, NPT taps are provided (near the inlet and outlet on both sides) allowing for the quick mounting of pressure gauges to monitor pressure loss
- Large straining capacity: With its large body and sizeable straining element, the BS86 has the ability to store large quantities of debris without affecting pressure loss thus maximizing time between servicing
- The standard material for straining elements is type 304 stainless steel
