ThermOmegaTech® Therm-O-Mix® 387-512100-003 Low Pressure Washdown Station, 3 to 25 gpm Flow Rate, Domestic
CBPN:257718
MPN:387-512100-003
Price:
$20191.00 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
ThermOmegaTech® Therm-O-Mix® Washdown Station, Low Pressure, 3 to 25 gpm Flow Rate, 1-1/4 in Water Inlet x 1 in Steam Inlet/1-1/4 in Water Outlet x 1 in Drain Pipe Connection, FNPT Connection, Metering Valve, 19-7/8 in L x 14-1/2 in W x 31-3/4 in H Dimensions, Domestic

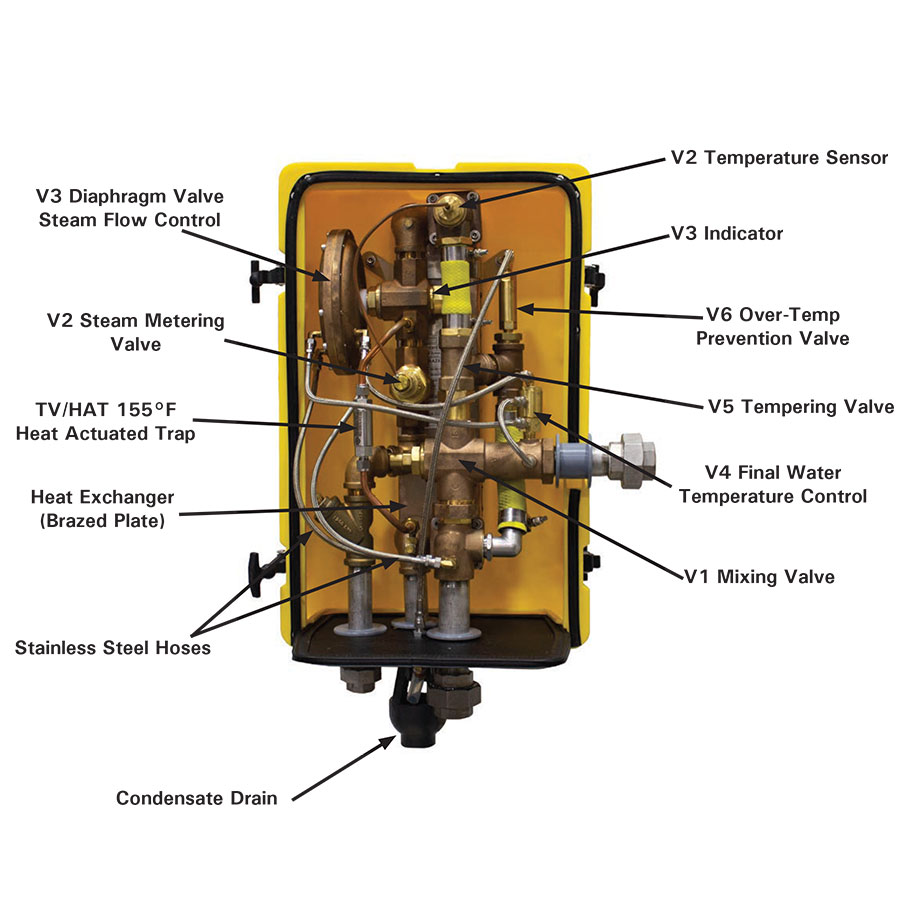

The Therm-O-Mix® tepid water delivery system provides an instantaneous and reliable source of tepid water for safety showers, facewash and eyewash stations using existing plant steam and water. The unit is completely mechanical and requires no outside electricity or air to function, making it particularly ideal for explosion-proof industrial environments.
ThermOmegaTech® Therm-O-Mix® 387-512100-003 Low Pressure Washdown Station, 3 to 25 gpm Flow Rate, Domestic
CBPN:257718
MPN:387-512100-003
Price:
$20191.00 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Prop 65:
DESCRIPTION
ThermOmegaTech® Therm-O-Mix® Washdown Station, Low Pressure, 3 to 25 gpm Flow Rate, 1-1/4 in Water Inlet x 1 in Steam Inlet/1-1/4 in Water Outlet x 1 in Drain Pipe Connection, FNPT Connection, Metering Valve, 19-7/8 in L x 14-1/2 in W x 31-3/4 in H Dimensions, Domestic
The Therm-O-Mix® tepid water delivery system provides an instantaneous and reliable source of tepid water for safety showers, facewash and eyewash stations using existing plant steam and water. The unit is completely mechanical and requires no outside electricity or air to function, making it particularly ideal for explosion-proof industrial environments.
Specifications
Brand: ThermOmegaTech®
Weight: 95lbs
Flow Rate: 3 to 25 gpm
Type: Low Pressure
Connection Size: 1-1/4 in Water Inlet x 1 in Steam Inlet/1-1/4 in Water Outlet x 1 in Drain Pipe
Connection Type: FNPT
Dimensions: 19-7/8 in L x 14-1/2 in W x 31-3/4 in H
Manufacturer Name: ThermOmegaTech
Valve/Cartridge Type: Metering Valve
Includes: Steam Trap
Application: Explosion-Proof Environments and Outdoor Installation Applications
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI Specified | ASSE 1071 | OSHA Approved | PROP65: This product can expose you to chemicals, for example lead, nickel, acrylonitrile, which are known to the State of CA to cause cancer, birth defects or reproductive harm. For more information, go to www.P65Warnings.ca.gov
Item Features
- Self-operating, no external power source required
- Maintains constant 80 deg F output regardless of inlet water temperature
- Easy to retrofit on existing shower or combination face/eyewash stations
- Plant steam and water never mix - uses a compact heat exchanger
- Self-purging - no need for elaborate drainage system
