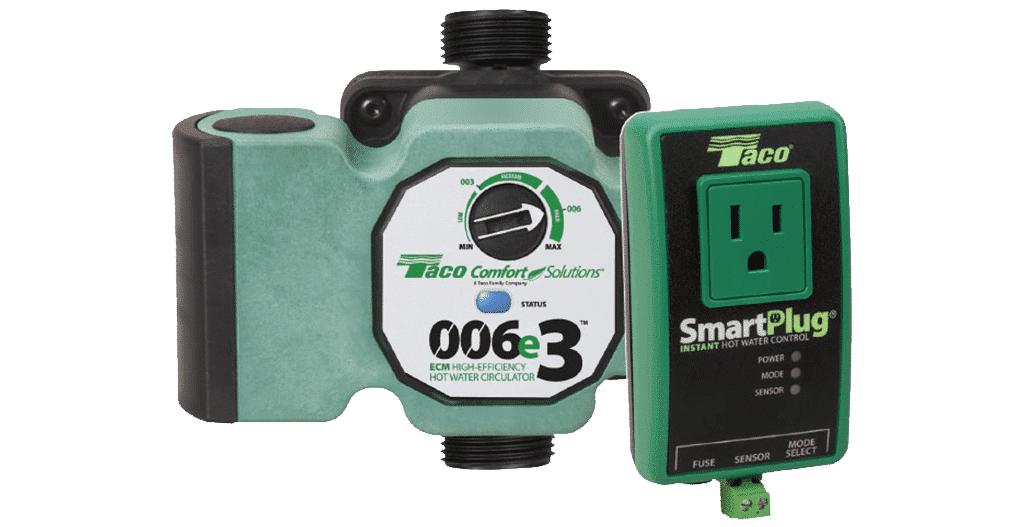

Taco® SPe-1 SmartPlus-e Smartplus ECM Hot Water Recirculation System, Composite Circulator Casing, 11 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 307073
MPN:SPe-1
Price:
$470.40 / EA
DESCRIPTION
Taco® SPe-1, Smartplus ECM Hot Water Recirculation System W/ Smart Plug, Series: SmartPlus-e, Composite Casing, 11 gpm Flow Rate, 13 ft Maximum Head, 1/2 hp Power, 115 V, 0.54 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 1440 to 3720 rpm Motor, Composite Impeller, Union End Connection (Unions Sold Separately), 36 to 203 deg F, Carbon Bearing, 5-1/8 in H x 5-1/8 in W x 5-1/2 in D Dimensions, Domestic
Taco® SPe-1 SmartPlus-e Smartplus ECM Hot Water Recirculation System, Composite Circulator Casing, 11 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 307073
MPN:SPe-1
Price:
$470.40 / EA
DESCRIPTION
Taco® SPe-1, Smartplus ECM Hot Water Recirculation System W/ Smart Plug, Series: SmartPlus-e, Composite Casing, 11 gpm Flow Rate, 13 ft Maximum Head, 1/2 hp Power, 115 V, 0.54 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 1440 to 3720 rpm Motor, Composite Impeller, Union End Connection (Unions Sold Separately), 36 to 203 deg F, Carbon Bearing, 5-1/8 in H x 5-1/8 in W x 5-1/2 in D Dimensions, Domestic
Specifications
Brand: Taco®
Weight: 5 lbs
Bearing Type: Carbon
Impeller Type: Composite
Temperature Rating: 36 to 203 deg F
Flow Rate: 11 gpm
Inlet Size: 1/2, 3/4 in
Outlet Size: 1/2, 3/4 in
Voltage Rating: 115 V
Phase: 1
Amperage Rating: 0.54 A
Body Material: Composite
Dimensions: 5-1/8 in H x 5-1/8 in W x 5-1/2 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 13 ft
Maximum Pressure: 150 psi
Motor Speed: 1440 to 3720 rpm
Mounting Type: Union
Power Rating: 1/2 hp
Series: SmartPlus-e
Includes: 6 ft. Power Cord
Application: For Indoor Use Only, Open Loop Potable Systems, Dedicated Hot Water Return Line Systems and Tank Water Heater Systems
Country of Origin: US
Item Features
- SureStart automatic unblocking and air purging mode
- No timers or programming required
- Easy installation
- Smart setting maximizes hot water comfort and energy savings
- It automatically purges air and unblocks the pump to keep it trouble-free
- A Taco exclusive feature is your no-callback safety net
- 13 in shutoff head ft.
- Pre-wired power cord
- Quick & easy installation
- Easy to use dial
- Composite casing
- Whisper quiet operation
- High-efficiency ECM motor uses up to 85% less electricity
- Double insulated and no ground wire required
- No programming Learns hot water usage patterns automatically
