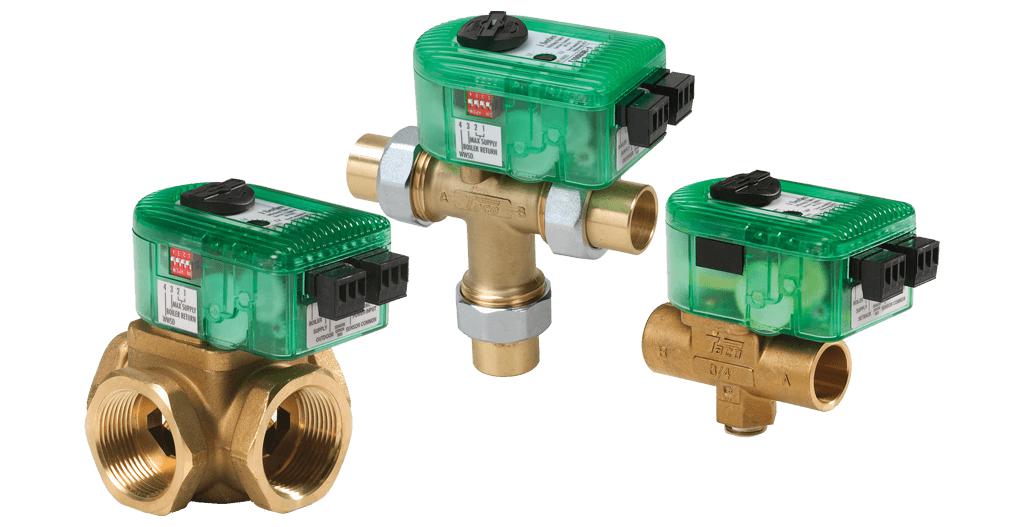

Taco® i100C3S-1 I Series Mixing Valves, 1 in Nominal, Sweat End Style, 125 psi Pressure, 3.0 Cv Flo
CBPN: 307031
MPN:i100C3S-1
Price:
$613.03 / ea
DESCRIPTION
Taco® i100C3S-1, Mixing Valves, Series: I Series, 1 in Nominal, Sweat End Style, 125 psi Pressure, 20 to 240 deg F at 135 deg ambient, 3.0 Cv Flow, Media: Water/Glycol, Setpoint Actuator, 5 in H x 2-3/8 in W x 2-5/8 in D Dimensions
Taco® i100C3S-1 I Series Mixing Valves, 1 in Nominal, Sweat End Style, 125 psi Pressure, 3.0 Cv Flo
CBPN: 307031
MPN:i100C3S-1
Price:
$613.03 / ea
DESCRIPTION
Taco® i100C3S-1, Mixing Valves, Series: I Series, 1 in Nominal, Sweat End Style, 125 psi Pressure, 20 to 240 deg F at 135 deg ambient, 3.0 Cv Flow, Media: Water/Glycol, Setpoint Actuator, 5 in H x 2-3/8 in W x 2-5/8 in D Dimensions
Specifications
Brand: Taco®
Weight: 1.75 lbs
Nominal Size: 1 in
End Style: Sweat
Pressure Rating: 125 psi
Flow Capacity: 3.0 Cv
Actuator Type: Setpoint
Dimensions: 5 in H x 2-3/8 in W x 2-5/8 in D
Manufacturer Name: Taco
Media: Water/Glycol
Series: I Series
Temperature Rating: 20 to 240 deg F at 135 deg ambient
Type: Zone Valve
Includes: System Supply Sensor
Application: For Heating
Country of Origin: US
Item Features
- 2-way Injection, 3-way or 4-way Mixing
- Operates Off Constant Power or Relay End Switch
- Ball Valve Design, High Cv
- Manual Operation Button
- Solid State Microprocessor Design
- Compact Design
- Easy, One-handed Actuator Removal
- Plug-in Low Voltage Connections
- Multi-Status LED Indicator Light
- Fail Safe Mode
- Selectable Maximum Supply Temperature(110 deg F, 130 deg F, 150 deg F, or Off )
- Selectable Minimum Supply Temperature( 85 deg F, when Maximum supply temperature isset to 150 deg F or Off )
- Adjustable Minimum Boiler Return Temperature (120 deg F, 135 deg F, or Off )
- Warm Weather Shutdown (70 deg F or Off )
- Adjustable Heating Curve (0.2-2.2 Reset Ratio)
- Adjustable Setpoint Dial (80 deg F to 180 deg F)
- Selectable 15 deg F Setback
- Optional Boiler Protection (Set at 135 deg F)
