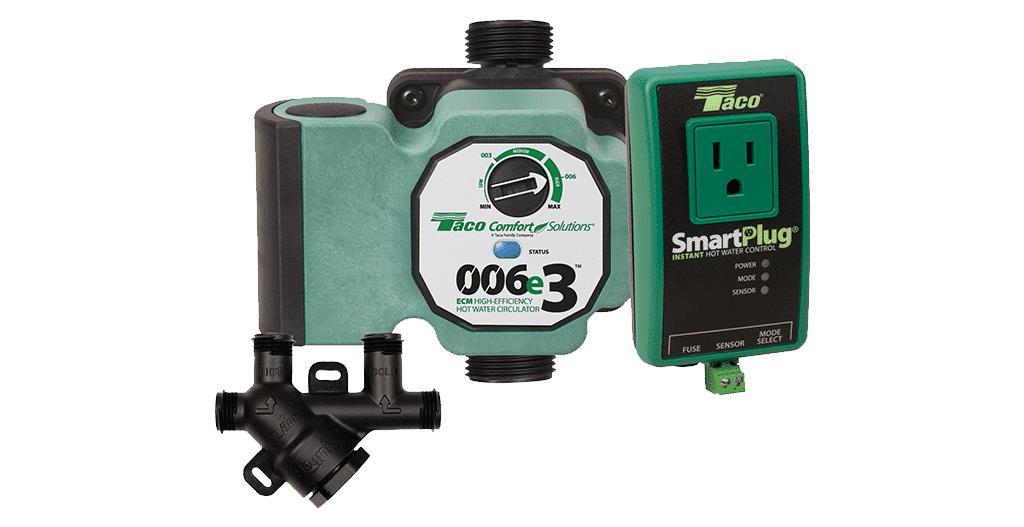

Taco® HLPe-1 HLPE High Efficiency ECM Domestic Hot Water Recirculation, 11 gpm Flow Rate, 1/2 in Inlet, 120 V, 1
CBPN: 307006
UPC:190145491327
MPN:HLPe-1
Price:
$513.95 / EA
DESCRIPTION
Taco® HLPe-1, ECM Domestic Hot Water Recirculation, High Efficiency, Series: HLPE, 11 gpm Flow Rate, 1/2 in Inlet, 13 ft Maximum Head, 44 W Power, 120 V, 0.52 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Noryl® Impeller, 36 to 203 deg F, 8.5 in H x 2.5 in W Dimensions
Taco® HLPe-1 HLPE High Efficiency ECM Domestic Hot Water Recirculation, 11 gpm Flow Rate, 1/2 in Inlet, 120 V, 1
CBPN: 307006
MPN:HLPe-1
UPC:190145491327
Price:
$513.95 / EA
DESCRIPTION
Taco® HLPe-1, ECM Domestic Hot Water Recirculation, High Efficiency, Series: HLPE, 11 gpm Flow Rate, 1/2 in Inlet, 13 ft Maximum Head, 44 W Power, 120 V, 0.52 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Noryl® Impeller, 36 to 203 deg F, 8.5 in H x 2.5 in W Dimensions
Specifications
Brand: Taco®
Weight: 7 lbs
Impeller Type: Noryl®
Temperature Rating: 36 to 203 deg F
Flow Rate: 11 gpm
Inlet Size: 1/2 in
Voltage Rating: 120 V
Phase: 1
Amperage Rating: 0.52 A
Dimensions: 8.5 in H x 2.5 in W
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 13 ft
Maximum Pressure: 150 psi
Motor Speed: 3250 rpm
Power Rating: 44 W
Series: HLPE
Type: High Efficiency
Includes: Taco Circulator
Application: For Hot Water Recirculation Systems, Water/Glycol concentrations up to 50% in Closed Hydronic Systems, Open Loop Potable Water Systems and Closed Hydronic Systems
Country of Origin: US
Standards and Approvals: NSF Certified
Item Features
- SureStart®, a Taco exclusive feature, is your no-callback safety net It automatically purges air and unblocks the pump to keep it trouble-free
- Pulse Mode cycles the circulator on and off maintaining hot water at all fixtures at all times
- Exercise Function periodically cycles the circulator while in Vacation Mode to prevent any corrosion or scale build up
- Whisper quiet operation
- High-efficiency ECM motor uses up to 85% less electricity
- Vacation Mode turns the circulator off after 36 hours of no use until hot water is needed again
- Easy installation: - Compact design for tight spaces
- Ideal for retrofits
- Instant hot water for existing plumbing systems; no dedicated return line needed
- Smart Mode learns household hot water usage patterns, running the circulator only when hot water is needed
- Easy installation - no wiring, no programming, no timer, no Aquastat
- Double Insulated No ground necessary
- Easy to use dial: - Low, Medium, High - 003 & 006 performance point references
- Trouble-free performance reinforced by SureStart automatic unblocking and air purging
