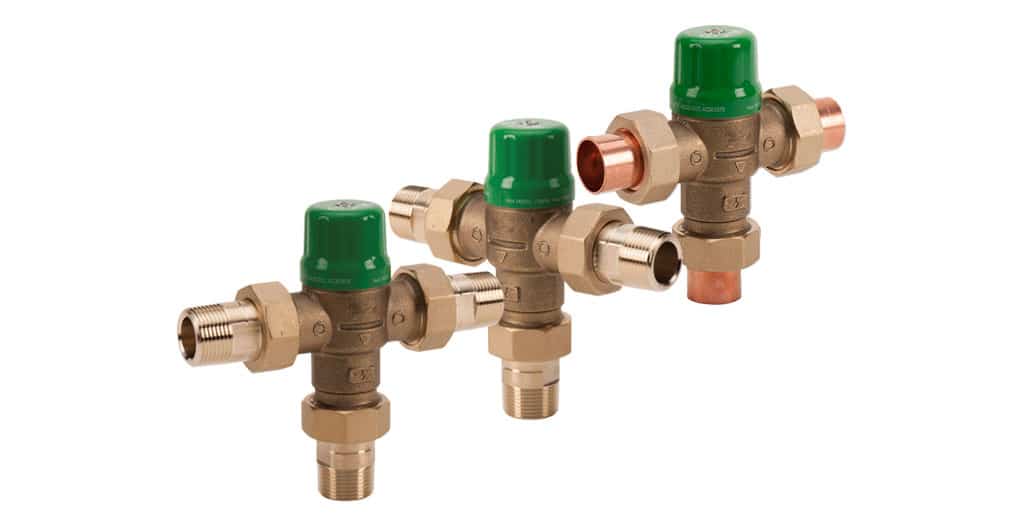

Taco® 5120-2 5120 Lead Free Mixing Valve, 230 psi Pressure, 1.8 Cv Flow, Forged Brass Body, Domestic
CBPN: 306965
MPN:5120-2
Price:
$113.82 / ea
DESCRIPTION
Taco® 5120-2, Mixing Valve, Lead Free, Series: 5120, 230 psi Pressure, 85 to 176 deg F, 1.8 Cv Flow, 3.3 in Inlet to Outlet Length, Forged Brass Body, 3.8 in H x 3.3 in W Dimensions, Domestic
Taco® 5120-2 5120 Lead Free Mixing Valve, 230 psi Pressure, 1.8 Cv Flow, Forged Brass Body, Domestic
CBPN: 306965
MPN:5120-2
Price:
$113.82 / ea
DESCRIPTION
Taco® 5120-2, Mixing Valve, Lead Free, Series: 5120, 230 psi Pressure, 85 to 176 deg F, 1.8 Cv Flow, 3.3 in Inlet to Outlet Length, Forged Brass Body, 3.8 in H x 3.3 in W Dimensions, Domestic
Specifications
Brand: Taco®
Weight: 1.25 lbs
Pressure Rating: 230 psi
Flow Capacity: 1.8 Cv
Body Material: Forged Brass
Dimensions: 3.8 in H x 3.3 in W
Inlet to Outlet Length: 3.3 in
Manufacturer Name: Taco
Series: 5120
Temperature Rating: 85 to 176 deg F
Type: Lead Free
Includes: Check Valves
Application: For Potable Water
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: UPC
Item Features
- Suitable for use in Potable Water
- No Routine Maintenance Required
- Outlet Temperature Strip
- +- 3 deg F Accuracy of Outlet Temperature
- Factory set to 115-120 deg F
- 120 to 180 deg F Hot Supply Temperature
- 20% Maximum Variation in Supply Pressure
- 27 deg F Minimum Temperature Differential Between Hot Supply and Mixed
- 39 to 80 deg F Cold Supply Temperature
- 85 to 120 deg F Outlet Temperature Range
- Lockable Maximum Temperature Setting
- Includes Temperature Gauge
- Outlet Temperature Strip
