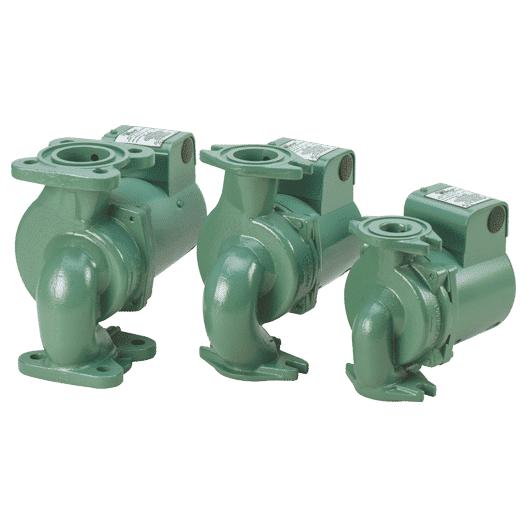

Taco® 2400-20-WB3P 2400 Cast Iron Wood Boiler Pump, 3/4, 1-1/2 in Inlet x 3/4, 1-1/2 in Outlet, 115 V, Domestic
CBPN: 306863
MPN:2400-20-WB3P
DESCRIPTION
Taco® 2400-20-WB3P, Wood Boiler Pump, Cast Iron, Series: 2400, 3/4, 1-1/2 in Inlet, 3/4, 1-1/2 in Outlet, 1/6 hp Power, 115 V, 150 psi Maximum, Glass-Filled Noryl® Impeller, Flange Mounting, 40 to 225 deg F, Open Drip-Proof Enclosure, Lubricated Ball Bearing, 6-3/8 in H x 6-3/4 in W x 4-1/2 in D Dimensions, Domestic
The compact 2400 Series High Capacity Circulators are designed for quiet, efficient, maintenance-free operation in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.
Taco® 2400-20-WB3P 2400 Cast Iron Wood Boiler Pump, 3/4, 1-1/2 in Inlet x 3/4, 1-1/2 in Outlet, 115 V, Domestic
CBPN: 306863
MPN:2400-20-WB3P
DESCRIPTION
Taco® 2400-20-WB3P, Wood Boiler Pump, Cast Iron, Series: 2400, 3/4, 1-1/2 in Inlet, 3/4, 1-1/2 in Outlet, 1/6 hp Power, 115 V, 150 psi Maximum, Glass-Filled Noryl® Impeller, Flange Mounting, 40 to 225 deg F, Open Drip-Proof Enclosure, Lubricated Ball Bearing, 6-3/8 in H x 6-3/4 in W x 4-1/2 in D Dimensions, Domestic
The compact 2400 Series High Capacity Circulators are designed for quiet, efficient, maintenance-free operation in a wide range of larger residential and commercial hydronic systems. Typical applications include hydronic heating, in-floor radiant, snow melt, high pressure drop boilers, outdoor wood boilers, chilled water cooling, geothermal heat pumps, primary/secondary loops and hydro air fan coils. The Stainless Steel 2400 Series should be used for open, domestic water recirculation systems. The carbon/silicon-carbide mechanical seal is easy to service in only a few minutes.
Specifications
Item Features
- Universal flange to flange dimensions Ideal for retrofits
- Carbon/Silicon-Carbide mechanical seal for long life
- Compact, space saving design
- Dual electrical knock-outs
- Anti-Condensate design for chilled water
- Rugged 1/2 in Stainless Steel Shaft
- Permanently lubricated, sealed for life bearings
- Superior efficiency, high starting torque
- Powerful close-coupled, maintenance free motor
- Dual pressure taps, suction/discharge
