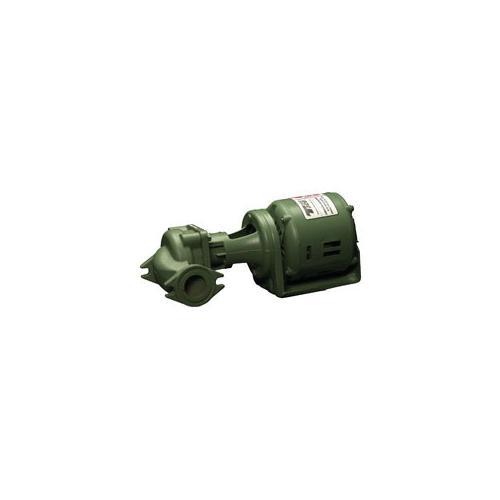

Taco® 120-13 120 Flanged In-Line Circulator Pump, 0 to 68 gpm Flow Rate, 2 in Inlet, 115 V AC, 1 Phase
CBPN: 36317
MPN:120-13
DESCRIPTION
Taco® 120-13, In-Line Circulator Pump, Flanged, Series: 120, 0 to 68 gpm Flow Rate, 2 in Inlet, 0 to 23 ft Maximum Head, 1/6 hp Power, 115 V AC, 60 Hz Frequency, 1 ph, 125 psi Maximum, 1725 rpm Motor, 1-Piece Non-Ferrous Impeller, Flange Mounting, 240 deg F, Open Drip-Proof Enclosure, Sleeve Bearing, 16-7/8 in W x 13-1/2 in H Dimensions
With millions in service, Taco® in-line circulators have earned their reputation for proven performance and dependable, quiet operation. These units are designed to efficiently circulate heated or chilled water in a full range of residential and commercial hydronic and solar systems, as well as zoning large installations, for primary-secondary systems and for parallel pumping designs. Available in sizes and configurations to meet all your needs, including all stainless steel construction for fresh water service.
Taco® 120-13 120 Flanged In-Line Circulator Pump, 0 to 68 gpm Flow Rate, 2 in Inlet, 115 V AC, 1 Phase
CBPN: 36317
MPN:120-13
DESCRIPTION
Taco® 120-13, In-Line Circulator Pump, Flanged, Series: 120, 0 to 68 gpm Flow Rate, 2 in Inlet, 0 to 23 ft Maximum Head, 1/6 hp Power, 115 V AC, 60 Hz Frequency, 1 ph, 125 psi Maximum, 1725 rpm Motor, 1-Piece Non-Ferrous Impeller, Flange Mounting, 240 deg F, Open Drip-Proof Enclosure, Sleeve Bearing, 16-7/8 in W x 13-1/2 in H Dimensions
With millions in service, Taco® in-line circulators have earned their reputation for proven performance and dependable, quiet operation. These units are designed to efficiently circulate heated or chilled water in a full range of residential and commercial hydronic and solar systems, as well as zoning large installations, for primary-secondary systems and for parallel pumping designs. Available in sizes and configurations to meet all your needs, including all stainless steel construction for fresh water service.
Specifications
Item Features
- Dependable, quiet operation - standard
- Equipment on many OEM boilers
- Two-piece carbon/ceramic seal assembly
- Easy, low-cost service - no special tools needed
- In-Line Circulators demonstrate proven performance, dependability, quiet operation and long lasting performance
- Rugged motor built to last, resilient mounted, split phase motor with built-in overload protector, equipped with sleeve bearings for quiet operation
- Factory tested, every circulator is operated before shipment
- 2 in flange
- Cast Iron 240 deg F - Stainless Steel 230 deg F maximum temperature
- Flanged connection
- Durable, one piece spring coupler
- Freedom Flanges required accessory
- One piece non-ferrous impeller
- Rugged bronze sleeve bearing
- Equipped with sleeve bearings for quiet operation
- No mechanical seal to replace
- Self-lubricating
