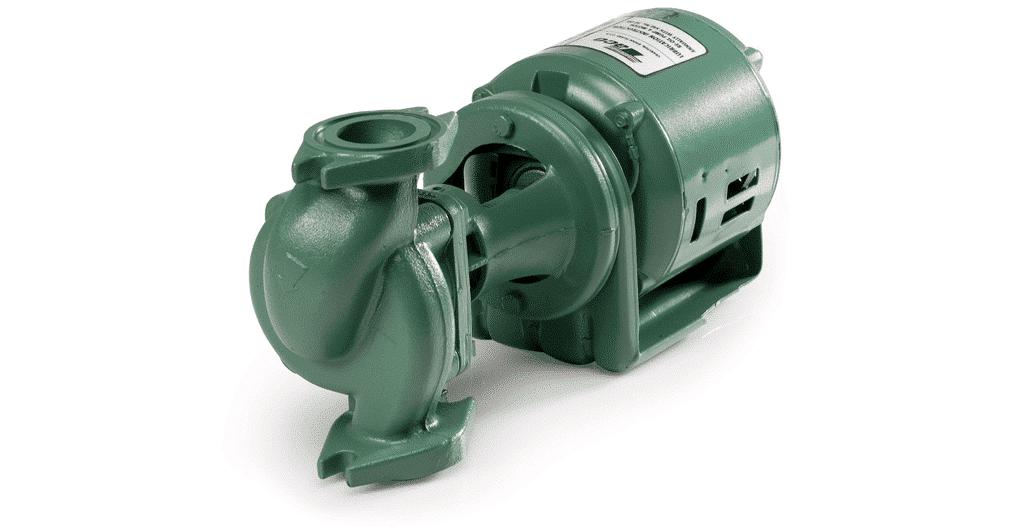

Taco® 110-24S 110 Stainless Steel 3-Piece Circulator, 35 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 115 V, 1 Phase
CBPN: 156526
MPN:110-24S
Price:
$1211.45 / ea
DESCRIPTION
Taco® 110-24S, 3-Piece Circulator, Stainless Steel, Series: 110, 35 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 7.5 ft Maximum Head, 1/12 hp Power, 115 V, 60 Hz Frequency, 1 ph, 125 psi Maximum, 1725 rpm Motor, Non-Metallic Impeller, Flange Mounting, 240 deg F, Open Drip-Proof Enclosure, Sleeve Bearing, 7-7/8 in H x 14-5/8 in W Dimensions
Taco® 110-24S 110 Stainless Steel 3-Piece Circulator, 35 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 115 V, 1 Phase
CBPN: 156526
MPN:110-24S
Price:
$1211.45 / ea
DESCRIPTION
Taco® 110-24S, 3-Piece Circulator, Stainless Steel, Series: 110, 35 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 7.5 ft Maximum Head, 1/12 hp Power, 115 V, 60 Hz Frequency, 1 ph, 125 psi Maximum, 1725 rpm Motor, Non-Metallic Impeller, Flange Mounting, 240 deg F, Open Drip-Proof Enclosure, Sleeve Bearing, 7-7/8 in H x 14-5/8 in W Dimensions
Specifications
Brand: Taco®
Weight: 24 lbs
Bearing Type: Sleeve
Impeller Type: Non-Metallic
Temperature Rating: 240 deg F
Flow Rate: 35 gpm
Inlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Voltage Rating: 115 V
Phase: 1
Dimensions: 7-7/8 in H x 14-5/8 in W
Enclosure Type: Open Drip-Proof
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 7.5 ft
Maximum Pressure: 125 psi
Motor Speed: 1725 rpm
Mounting Type: Flange
Power Rating: 1/12 hp
Series: 110
Type: Stainless Steel
Application: For Heating
Warranty: 1 Year Limited Warranty
Country of Origin: US
Standards and Approvals: NSF Certified
Item Features
- Flanged connection
- No mechanical seal to replace
- Freedom flanges required accessory
- Replaceable mechanical seal
- Self-lubricating
