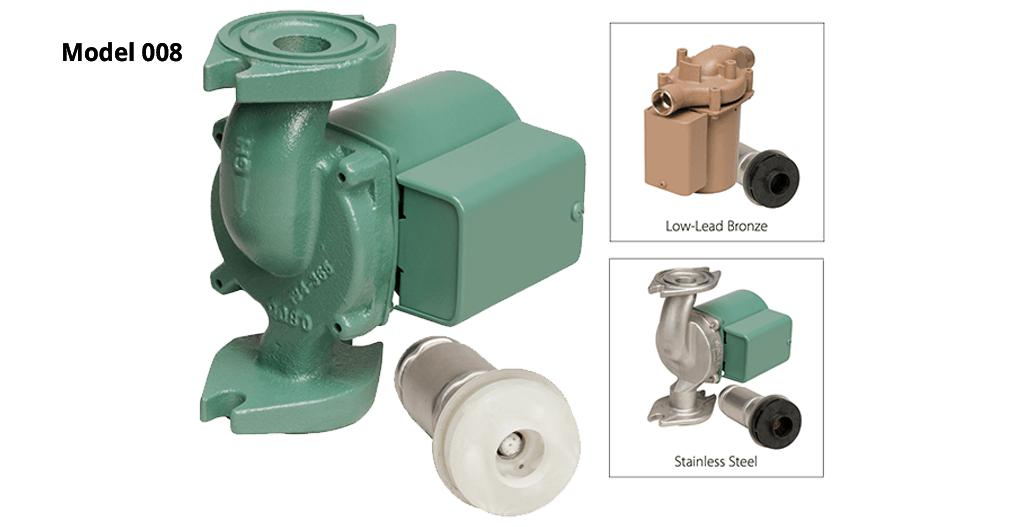

Taco® 008-SF7Y 00 Stainless Steel Cartridge Circulator, 0 to 14 gpm Flow Rate, 3/4, 1-1/4, 1-1/2 in Inlet, 230 V, 1 Phase , Domestic
CBPN: 306823
MPN:008-SF7Y
Price:
$553.06 / ea
DESCRIPTION
Taco® 008-SF7Y, Cartridge Circulator, Stainless Steel, Series: 00, 0 to 14 gpm Flow Rate, 3/4, 1-1/4, 1-1/2 in Inlet, 0 to 16 ft Maximum Head, 1/25 hp Power, 230 V, 0.51 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, Domestic
Taco® 008-SF7Y 00 Stainless Steel Cartridge Circulator, 0 to 14 gpm Flow Rate, 3/4, 1-1/4, 1-1/2 in Inlet, 230 V, 1 Phase , Domestic
CBPN: 306823
MPN:008-SF7Y
Price:
$553.06 / ea
DESCRIPTION
Taco® 008-SF7Y, Cartridge Circulator, Stainless Steel, Series: 00, 0 to 14 gpm Flow Rate, 3/4, 1-1/4, 1-1/2 in Inlet, 0 to 16 ft Maximum Head, 1/25 hp Power, 230 V, 0.51 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, Domestic
Specifications
Brand: Taco®
Weight: 9 lbs
Bearing Type: Carbon
Impeller Type: Non-Metallic
Temperature Rating: 40 to 230 deg F
Flow Rate: 0 to 14 gpm
Inlet Size: 3/4, 1-1/4, 1-1/2 in
Voltage Rating: 230 V
Phase: 1
Amperage Rating: 0.51 A
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 0 to 16 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: Flange
Power Rating: 1/25 hp
Series: 00
Type: Stainless Steel
Includes: Flange Gaskets
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: UL-CUS
Item Features
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
