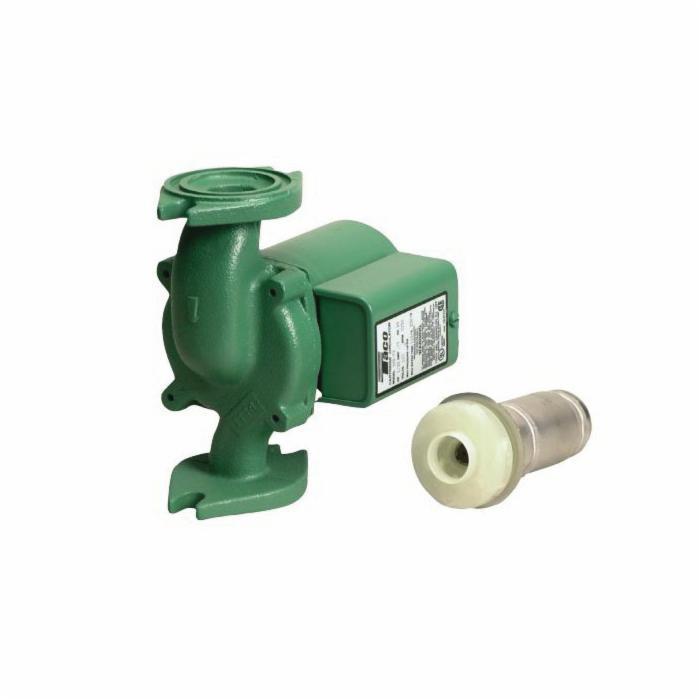

Taco® 008-F6 008 Cast Iron Cartridge Circulator Pump, 14 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 1 Phase , 1/25 hp, Cast Iron, Domestic
CBPN: 306818
UPC:687752190434
MPN:008-F6
DESCRIPTION
Taco® 008-F6, Cartridge Circulator Pump, Cast Iron, Series: 008, 14 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 16 ft Maximum Head, 115 V AC, 0.79 A, 1 ph, 230 deg F Fluid, 1/25 hp Power, 1/25 hp, Non-Metallic Impeller, Carbon Bearing, Flange Mounting, Cast Iron, 6 in W x 6-3/8 in H Dimensions, Domestic
With their self-lubricating design and no mechanical seal, Taco® 00 cartridge circulators provide unmatched reliability that makes them maintenance free. Every Taco® 00 and 00 IFC® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. Their wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications. Taco® 00 IFC Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Taco® 008-F6 008 Cast Iron Cartridge Circulator Pump, 14 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 1 Phase , 1/25 hp, Cast Iron, Domestic
CBPN: 306818
MPN:008-F6
UPC:687752190434
DESCRIPTION
Taco® 008-F6, Cartridge Circulator Pump, Cast Iron, Series: 008, 14 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 16 ft Maximum Head, 115 V AC, 0.79 A, 1 ph, 230 deg F Fluid, 1/25 hp Power, 1/25 hp, Non-Metallic Impeller, Carbon Bearing, Flange Mounting, Cast Iron, 6 in W x 6-3/8 in H Dimensions, Domestic
With their self-lubricating design and no mechanical seal, Taco® 00 cartridge circulators provide unmatched reliability that makes them maintenance free. Every Taco® 00 and 00 IFC® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. Their wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications. Taco® 00 IFC Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Specifications
Item Features
- Direct drive - low power consumption
- Unique replaceable cartridge design - field serviceable
- Unmatched reliability, maintenance free
- Prevents gravity flow/reverse flow
- Eliminates separate in-line flow check
- Reduces installed cost
- Improves system performance
- Without mechanical seal
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Self Lubricating
