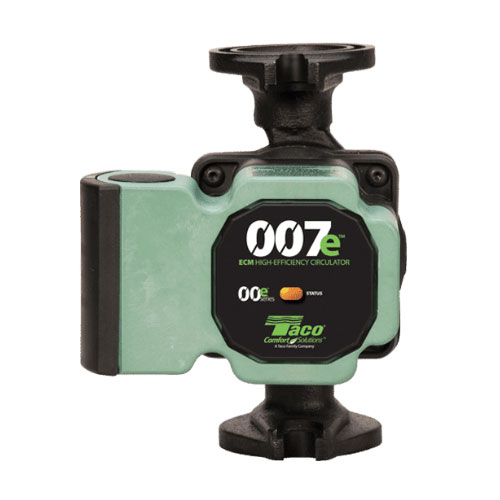

Taco® 007e-2F2 ECM High-Efficiency Circulator, 00e Series, Cast Iron Casing, Standard Flange End Connection, 16 gpm Flow Rate, 115 V, 1 Phase
CBPN: 306805
MPN:007e-2F2
DESCRIPTION
Taco® 007e-2F2, Variable Speed Circulator, Cast Iron, Series: 00e, 16 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.54 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 36 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 6 in D Dimensions
The Taco 007e-2 is a variable speed, high-efficiency wet rotor circulator with an ECM, permanent magnet motor. Its ECM performance is equivalent to the legendary Taco 007 and ideal for hydronic systems zoned with circulators or zone valves. It reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators, including the Taco 007 model.
Taco® 007e-2F2 ECM High-Efficiency Circulator, 00e Series, Cast Iron Casing, Standard Flange End Connection, 16 gpm Flow Rate, 115 V, 1 Phase
CBPN: 306805
MPN:007e-2F2
DESCRIPTION
Taco® 007e-2F2, Variable Speed Circulator, Cast Iron, Series: 00e, 16 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.54 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 36 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 6 in D Dimensions
The Taco 007e-2 is a variable speed, high-efficiency wet rotor circulator with an ECM, permanent magnet motor. Its ECM performance is equivalent to the legendary Taco 007 and ideal for hydronic systems zoned with circulators or zone valves. It reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators, including the Taco 007 model.
Specifications
For Water or Maximum of 50% Water/Glycol Solution, Indoor Use Only, Domestic Water Recirculation, Potable Water and Open Loop Systems, Not suitable for chilled water
Item Features
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
- Cast Iron Construction
- 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Connection Sizes Available
