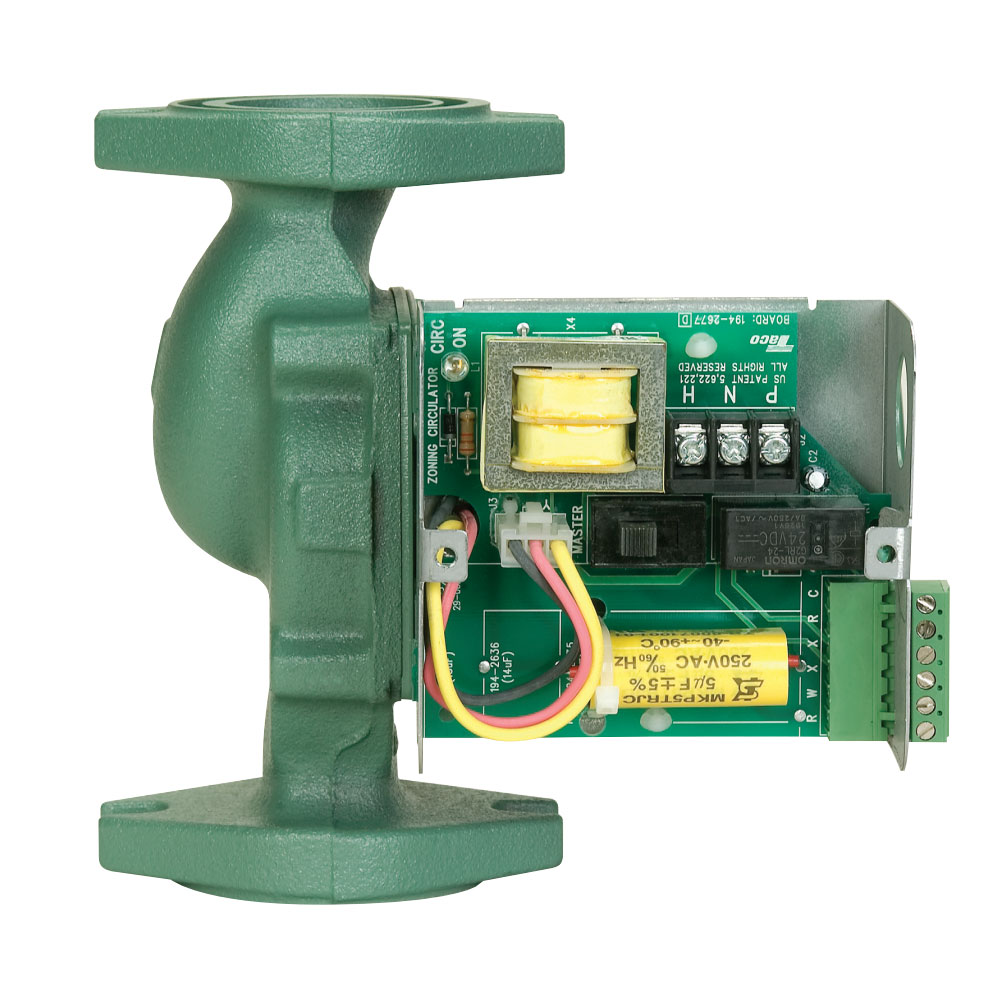

Taco® 007-ZF5-9 Priority Zoning Circulator, 00 Series, Cast Iron Casing, Standard Flange End Connection, 23 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306813
MPN:007-ZF5-9
DESCRIPTION
Taco® 007-ZF5-9, Priority Zoning Circulator, Cast Iron, Series: 00, Model: 007, 23 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, Domestic
The patented Taco Priority Zoning Circulator combines the reliability of the 00® circulator with the convenience and efficiency of a switching relay. With a built-in transformer, relay and priority switch, all the wiring is done directly to the circulator’s PC board, making it ideal for adding a zone or an indirect hot water heater. Now available with optional integral flow check (IFC®).
Taco® 007-ZF5-9 Priority Zoning Circulator, 00 Series, Cast Iron Casing, Standard Flange End Connection, 23 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306813
MPN:007-ZF5-9
DESCRIPTION
Taco® 007-ZF5-9, Priority Zoning Circulator, Cast Iron, Series: 00, Model: 007, 23 gpm Flow Rate, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 Amps, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, Domestic
The patented Taco Priority Zoning Circulator combines the reliability of the 00® circulator with the convenience and efficiency of a switching relay. With a built-in transformer, relay and priority switch, all the wiring is done directly to the circulator’s PC board, making it ideal for adding a zone or an indirect hot water heater. Now available with optional integral flow check (IFC®).
Specifications
Item Features
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
- Cast Iron or Stainless Steel Construction
- 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Connection Sizes
