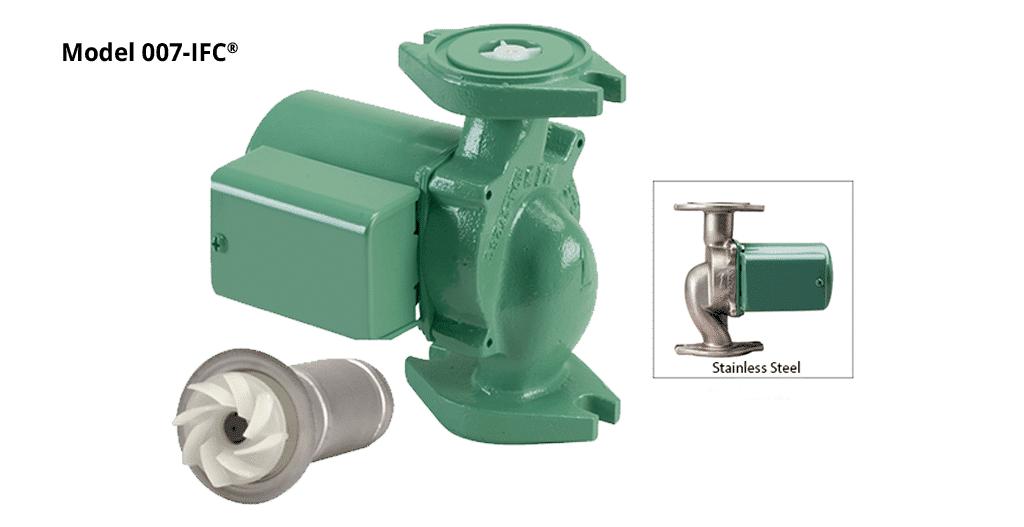

Taco® 007-F5-8IFC 00 Cast Iron Cartridge Circulator, 23 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 115 V, 1 Phase
CBPN: 210449
MPN:007-F5-8IFC
Price:
$165.22 / ea
DESCRIPTION
Taco® 007-F5-8IFC, Cartridge Circulator, Cast Iron, Series: 00, 23 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 5-7/8 in D Dimensions
Taco® 007-F5-8IFC 00 Cast Iron Cartridge Circulator, 23 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 115 V, 1 Phase
CBPN: 210449
MPN:007-F5-8IFC
Price:
$165.22 / ea
DESCRIPTION
Taco® 007-F5-8IFC, Cartridge Circulator, Cast Iron, Series: 00, 23 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 10 ft Maximum Head, 1/25 hp Power, 115 V, 0.74 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5 in W x 5-7/8 in D Dimensions
Specifications
Brand: Taco®
Weight: 8 lbs
Bearing Type: Carbon
Impeller Type: Non-Metallic
Temperature Rating: 40 to 230 deg F
Flow Rate: 23 gpm
Inlet Size: 3/4, 1-1/4, 1, 1-1/2 in
Voltage Rating: 115 V
Phase: 1
Amperage Rating: 0.74 A
Dimensions: 6-3/8 in H x 5 in W x 5-7/8 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 10 ft
Maximum Pressure: 125 psi
Motor Speed: 3250 rpm
Mounting Type: Flange
Power Rating: 1/25 hp
Series: 00
Type: Cast Iron
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Country of Origin: US
Standards and Approvals: UL Listed
Item Features
- Cast Iron or Stainless Steel construction
- Flanged connections
- Integral Flow Check Simplifies piping Prevents reverse flow and gravity flow Eliminates separate in-line flow check Reduces installed cost Improves system performance Easy to service
- Quiet, efficient operation
- Self lubricating, No mechanical seal
- Unique replaceable cartridge-field serviceable
- Unmatched reliability-maintenance free
- Wide range of applications
