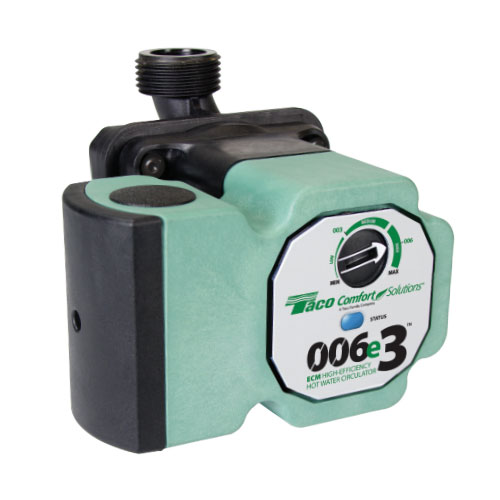

Taco® 006e3 00e ECM High-Efficiency Hot Water Circulator, 11 gpm Flow Rate, 1 in Inlet, 115 V, 1 Phase
CBPN: 306731
MPN:006e3
DESCRIPTION
Taco® 006e3, ECM High-Efficiency Hot Water Circulator, Series: 00e, 11 gpm Flow Rate, 1 in Inlet, 13 ft Maximum Head, 44 W Power, 115 V, 0.54 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 1590 to 4830 rpm Motor, Non-Metallic Impeller, 40 to 225 deg F, Carbon Bearing
The Taco 00e Series® — 006e3® ECM High-Efficiency Hot Water Circulator is an infinitely variable fixed speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It is perfect for hot water recirculation and hydronic heating applications. With 3 easy settings, the Taco 006e3® ECM High-Efficiency Hot Water Circulator delivers performance, reliability and ease of installation that made the 00® famous.
Taco® 006e3 00e ECM High-Efficiency Hot Water Circulator, 11 gpm Flow Rate, 1 in Inlet, 115 V, 1 Phase
CBPN: 306731
MPN:006e3
DESCRIPTION
Taco® 006e3, ECM High-Efficiency Hot Water Circulator, Series: 00e, 11 gpm Flow Rate, 1 in Inlet, 13 ft Maximum Head, 44 W Power, 115 V, 0.54 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 1590 to 4830 rpm Motor, Non-Metallic Impeller, 40 to 225 deg F, Carbon Bearing
The Taco 00e Series® — 006e3® ECM High-Efficiency Hot Water Circulator is an infinitely variable fixed speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It is perfect for hot water recirculation and hydronic heating applications. With 3 easy settings, the Taco 006e3® ECM High-Efficiency Hot Water Circulator delivers performance, reliability and ease of installation that made the 00® famous.
Specifications
Item Features
- Taco trusted 00e® series quality and reliability — Install it, forget it.™
- Easy to use dial:
- Low, Medium, High
- 003 & 006 performance point references
- Easy installation:
- Compact design for tight spaces
- Multiple connection options available
- High-efficiency ECM motor uses up to 85% less electricity
- SureStart® automatic unblocking and air purging mode
- 13’ Shut-off head, 11 gpm max flow
- 3 color LED indicator light:
- Blue: Operating mode
- White: SureStart®
- Red: Error diagnostic
- Whisper quiet operation
- Double insulated, no ground wire required
- Rugged high-performance composite casing
- 1” union connection with optional ½” & ¾” fitting sets sold separately
- Taco 006e3 can replace the following circulators:
- Grundfos UP15-18, UP15-10, UP10-16, Alpha 15-29
- Bell & Gossett ecocirc e3-4, e3-6, NBF-8, 9, 10, 12, SSF-9,12, E1, E3
- Armstrong Astro 220, 225
- *comparable circulator head and flow performance. Flow rate and head loss calculations should be performed to select the proper circulator for your applications. If additional assistance is needed, please don’t hesitate to contact us directly.
