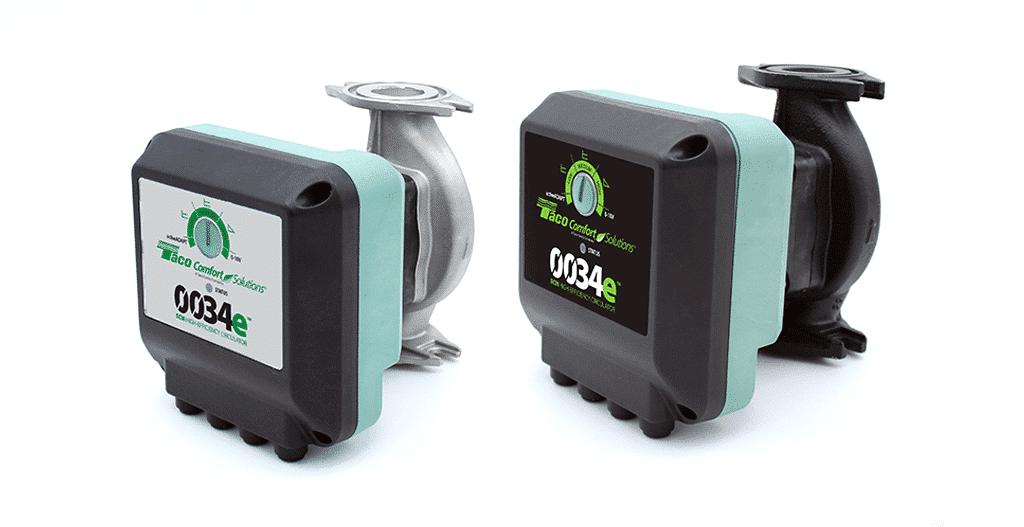

Taco® 0034eP-F2 00e Cast Iron High Efficiency Circulator, 50 gpm Flow Rate, 115/208/230 V, 1 Phase , Domestic
CBPN: 306770
MPN:0034eP-F2
Price:
$1124.27 / ea
DESCRIPTION
Taco® 0034eP-F2, High Efficiency Circulator, Cast Iron, Series: 00e, 50 gpm Flow Rate, 34 ft Maximum Head, 115/208/230 V, 1.48 A at 115V, 0.70 A at 230V, 50 to 60 Hz Frequency, 1 ph, 830 to 4300 rpm Motor, Composite Impeller, Flange Mounting, 14 to 230 deg F, Ceramic Bearing, 7.05 in H x 6.22 in W x 8.05 in D Dimensions, Domestic
Taco® 0034eP-F2 00e Cast Iron High Efficiency Circulator, 50 gpm Flow Rate, 115/208/230 V, 1 Phase , Domestic
CBPN: 306770
MPN:0034eP-F2
Price:
$1124.27 / ea
DESCRIPTION
Taco® 0034eP-F2, High Efficiency Circulator, Cast Iron, Series: 00e, 50 gpm Flow Rate, 34 ft Maximum Head, 115/208/230 V, 1.48 A at 115V, 0.70 A at 230V, 50 to 60 Hz Frequency, 1 ph, 830 to 4300 rpm Motor, Composite Impeller, Flange Mounting, 14 to 230 deg F, Ceramic Bearing, 7.05 in H x 6.22 in W x 8.05 in D Dimensions, Domestic
Specifications
Brand: Taco®
Weight: 11 lbs
Bearing Type: Ceramic
Impeller Type: Composite
Temperature Rating: 14 to 230 deg F
Flow Rate: 50 gpm
Voltage Rating: 115/208/230 V
Phase: 1
Amperage Rating: 1.48 A at 115V/0.70 A at 230V
Dimensions: 7.05 in H x 6.22 in W x 8.05 in D
Frequency Rating: 50 to 60 Hz
Manufacturer Name: Taco
Maximum Head: 34 ft
Motor Speed: 830 to 4300 rpm
Mounting Type: Flange
Series: 00e
Type: Cast Iron
Application: For Closed Loop Hydronic Heating, Hydronic Systems with Zone Vvalves, Zoning with Circulators, Hydronic Heating & Cooling TRV Systems, DHW recirculation (Stainless Steel) and Constant Flow Applications
Warranty: 1 Year
Domestic/Import: Domestic
Country of Origin: US
Item Features
- Simple 3-button control
- Digital LED screen displays, Watts, GPM, Head, RPM and diagnostic error codes
- Five operating modes to match any system requirements - activeADAPT®, Constant Pressure, Proportional Pressure, Min/Max Fixed Speed or speed control through 0-10 VDC or PWM external input
- BIO Barrier® protects the pump from system contaminants
- SureStart® automatic unblocking and air purging mode
- Replaces all single speed and 3-speed circulators in its class
- Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
- Nut-grabber feature on flanges for easier fit up
- Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
- Whisper quiet operation
- Rotatable control cover to simplify installation
