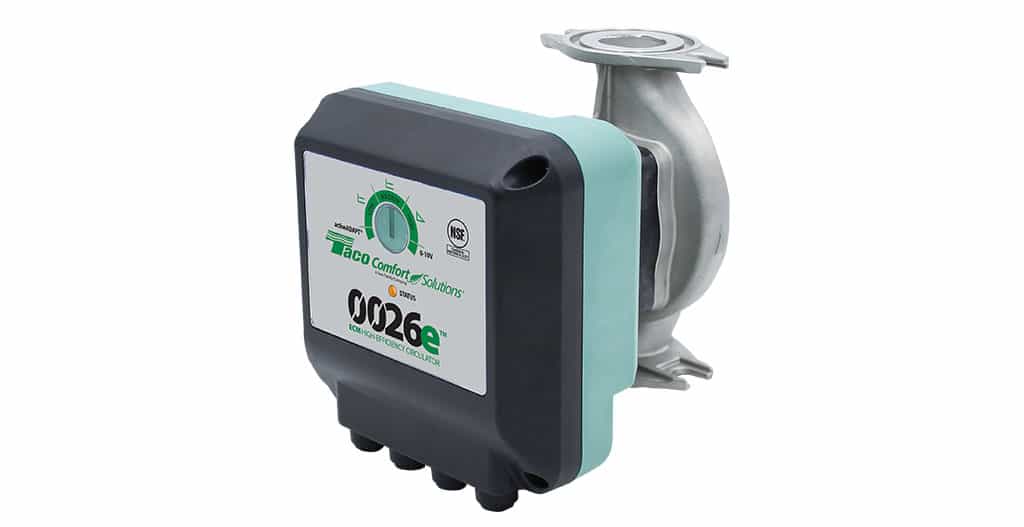

Taco® 0026e-SF2 00e Stainless Steel Variable Speed Circulator, 44 gpm Flow Rate, 115 V, 1 Phase
CBPN: 306768
MPN:0026e-SF2
Price:
$915.87 / ea
DESCRIPTION
Taco® 0026e-SF2, Variable Speed Circulator, Stainless Steel, Series: 00e, 44 gpm Flow Rate, 26 ft Maximum Head, 115 V, 1.05 A, 50 to 60 Hz Frequency, 1 ph, 830 to 3800 rpm Motor, Composite Impeller, Flange Mounting, 40 to 230 deg F, Ceramic Bearing, 7.05 in H x 8.05 in W x 6.22 in D Dimensions
Taco® 0026e-SF2 00e Stainless Steel Variable Speed Circulator, 44 gpm Flow Rate, 115 V, 1 Phase
CBPN: 306768
MPN:0026e-SF2
Price:
$915.87 / ea
DESCRIPTION
Taco® 0026e-SF2, Variable Speed Circulator, Stainless Steel, Series: 00e, 44 gpm Flow Rate, 26 ft Maximum Head, 115 V, 1.05 A, 50 to 60 Hz Frequency, 1 ph, 830 to 3800 rpm Motor, Composite Impeller, Flange Mounting, 40 to 230 deg F, Ceramic Bearing, 7.05 in H x 8.05 in W x 6.22 in D Dimensions
Specifications
Brand: Taco®
Weight: 11 lbs
Bearing Type: Ceramic
Impeller Type: Composite
Temperature Rating: 40 to 230 deg F
Flow Rate: 44 gpm
Voltage Rating: 115 V
Phase: 1
Amperage Rating: 1.05 A
Dimensions: 7.05 in H x 8.05 in W x 6.22 in D
Frequency Rating: 50 to 60 Hz
Manufacturer Name: Taco
Maximum Head: 26 ft
Motor Speed: 830 to 3800 rpm
Mounting Type: Flange
Series: 00e
Type: Stainless Steel
Application: For Closed Loop Hydronic Heating, Hydronic Systems with Zone Vvalves, Zoning with Circulators, Hydronic Heating & Cooling TRV Systems, DHW recirculation (Stainless Steel) and Constant Flow Applications
Country of Origin: US
Item Features
- 44 gpm Maximum Flow
- 150 psi Maximum Operating Pressure
- 26 ft Maximum Shut-off Head
- 230 deg F Maximum Water Temp
- 14 deg F Minimum Water Temp
