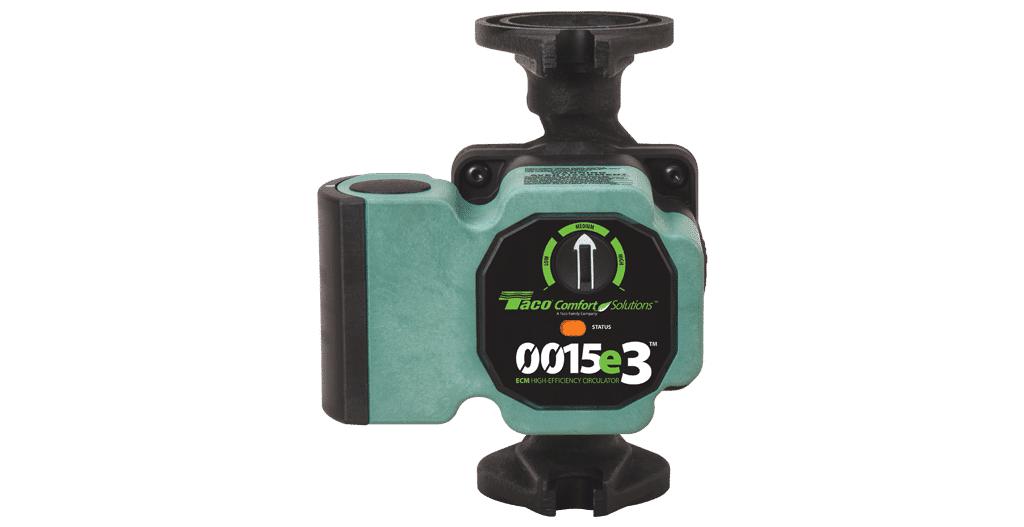

Taco® 0015e3-SU 00e Stainless Steel Variable Speed Circulator, 16 gpm Flow Rate, 1-1/2, 3/4, 1, 1-1/4 in Inlet x 1-1/2, 3/4, 1, 1-1/4 in Outlet, 115 V, 1 Phase
CBPN: 306759
MPN:0015e3-SU
DESCRIPTION
Taco® 0015e3-SU, Variable Speed Circulator, Stainless Steel, Series: 00e, 16 gpm Flow Rate, 1-1/2, 3/4, 1, 1-1/4 in Inlet, 1-1/2, 3/4, 1, 1-1/4 in Outlet, 18 ft Maximum Head, 115 V, 0.54 A, 60 Hz Frequency, 1 ph, 1590 to 4830 rpm Motor, Composite Impeller, Union Mounting, 230 deg F, Carbon Bearing, 5-1/8 in H x 5-1/6 in W x 5 in D Dimensions
The 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 0015e3 is not suitable for chilled water systems.
Taco® 0015e3-SU 00e Stainless Steel Variable Speed Circulator, 16 gpm Flow Rate, 1-1/2, 3/4, 1, 1-1/4 in Inlet x 1-1/2, 3/4, 1, 1-1/4 in Outlet, 115 V, 1 Phase
CBPN: 306759
MPN:0015e3-SU
DESCRIPTION
Taco® 0015e3-SU, Variable Speed Circulator, Stainless Steel, Series: 00e, 16 gpm Flow Rate, 1-1/2, 3/4, 1, 1-1/4 in Inlet, 1-1/2, 3/4, 1, 1-1/4 in Outlet, 18 ft Maximum Head, 115 V, 0.54 A, 60 Hz Frequency, 1 ph, 1590 to 4830 rpm Motor, Composite Impeller, Union Mounting, 230 deg F, Carbon Bearing, 5-1/8 in H x 5-1/6 in W x 5 in D Dimensions
The 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 0015e3 is not suitable for chilled water systems.
Specifications
Item Features
- Replaces all 3-speed hydronic circulators in its class
- High-efficiency ECM motor uses up to 85% less electricity
- SureStart® automatic unblocking and air purging mode
- Green Mode active system monitoring and automatic power optimization
- Nut-grabber feature on flanges for easier fit-up
- Double insulated - No ground wire required
- Whisper quiet operation
