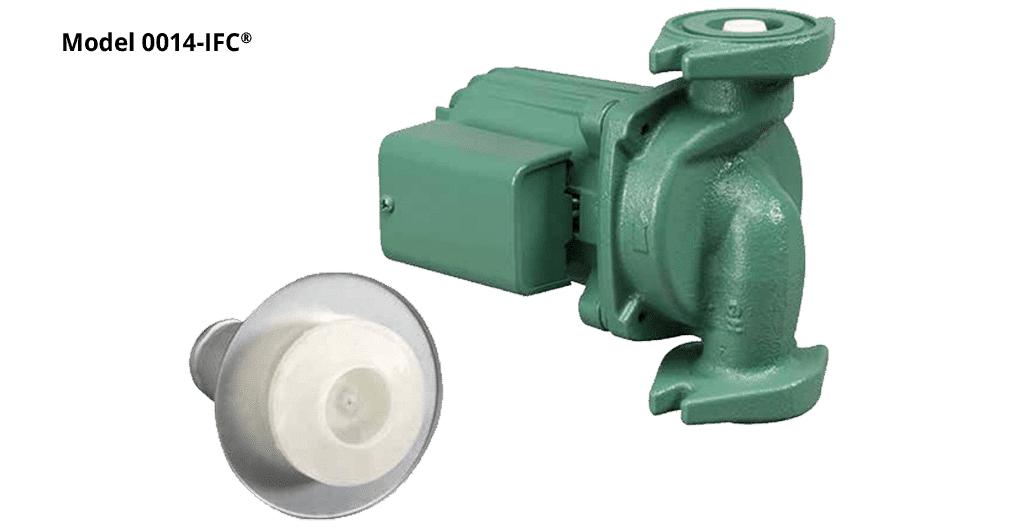

Taco® 0014-F1-1IFC Cartridge Circulator with Integral Flow Check, 00 Series, Cast Iron Casing, Rotated Standard Flange End Connection, 29 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306754
MPN:0014-F1-1IFC
Price:
$603.43 / EA
DESCRIPTION
Taco® 0014-F1-1IFC, Cartridge Circulator Pump with Integral Flow Check, Cast Iron, Series: 00, Model: 0014, 29 gpm Flow Rate, 23 ft Maximum Head, 1/8 hp Power, 115 V, 1.55 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Rotated Standard Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-1/2 in H x 5-1/2 in W x 7-1/4 in D Dimensions, Domestic
Taco® 0014-F1-1IFC Cartridge Circulator with Integral Flow Check, 00 Series, Cast Iron Casing, Rotated Standard Flange End Connection, 29 gpm Flow Rate, 115 V, 1 Phase, Domestic
CBPN: 306754
MPN:0014-F1-1IFC
Price:
$603.43 / EA
DESCRIPTION
Taco® 0014-F1-1IFC, Cartridge Circulator Pump with Integral Flow Check, Cast Iron, Series: 00, Model: 0014, 29 gpm Flow Rate, 23 ft Maximum Head, 1/8 hp Power, 115 V, 1.55 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Rotated Standard Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-1/2 in H x 5-1/2 in W x 7-1/4 in D Dimensions, Domestic
Specifications
Brand: Taco®
Weight: 14 lbs
Bearing Type: Carbon
Impeller Type: Non-Metallic
Temperature Rating: 40 to 230 deg F
Flow Rate: 29 gpm
Inlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Outlet Size: 3/4, 1, 1-1/4, 1-1/2 in
Voltage Rating: 115 V
Phase: 1
Amperage Rating: 1.55 A
Body Material: Cast Iron
Dimensions: 6-1/2 in H x 5-1/2 in W x 7-1/4 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 23 ft
Maximum Pressure: 150 psi
Motor Speed: 3250 rpm
Mounting Type: Flange
Power Rating: 1/8 hp
Series: 00
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: NSF Certified
Item Features
- Cast Iron or Stainless Steel construction, Flanged connections
- Direct drive-Low power consumption
- Integral Flow Check Prevents gravity flow Eliminates separate in-line flow check Reduces installed cost, easy to service Improved performance vs. In-line flow checks
- Quiet, efficient operation
- Self lubricating, No mechanical seal
- Standard high capacity output-Compact design
- Unique replaceable cartridge-Field serviceable
- Unmatched reliability-Maintenance free
- Wide range of applications
