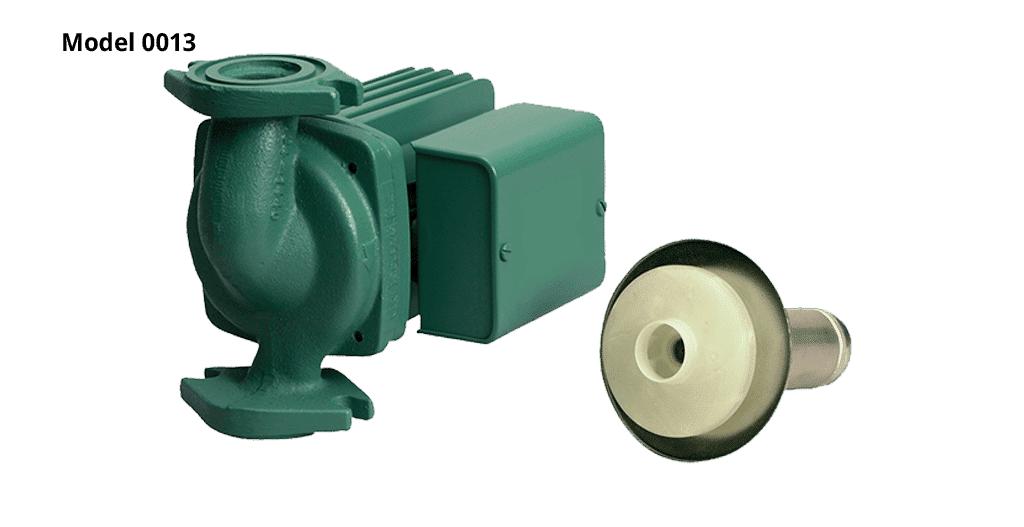

Taco® 0013-SF3 00 Stainless Steel Cartridge Circulator, 33 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 115 V, 1 Phase
CBPN: 30251
MPN:0013-SF3
Price:
$898.43 / ea
DESCRIPTION
Taco® 0013-SF3, Cartridge Circulator, Stainless Steel, Series: 00, 33 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 33 ft Maximum Head, 1/6 hp Power, 115 V, 2 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 220 deg F, Carbon Bearing, Stainless Steel, 6-1/2 in H x 7-1/2 in W x 5 in L x 6 in D Dimensions
Taco® 0013-SF3 00 Stainless Steel Cartridge Circulator, 33 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 115 V, 1 Phase
CBPN: 30251
MPN:0013-SF3
Price:
$898.43 / ea
DESCRIPTION
Taco® 0013-SF3, Cartridge Circulator, Stainless Steel, Series: 00, 33 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 33 ft Maximum Head, 1/6 hp Power, 115 V, 2 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 220 deg F, Carbon Bearing, Stainless Steel, 6-1/2 in H x 7-1/2 in W x 5 in L x 6 in D Dimensions
Specifications
Brand: Taco®
Weight: 14.5 lbs
Bearing Type: Carbon
Impeller Type: Non-Metallic
Temperature Rating: 40 to 220 deg F
Flow Rate: 33 gpm
Inlet Size: 1-1/2, 1, 3/4, 1-1/4 in
Voltage Rating: 115 V
Phase: 1
Amperage Rating: 2 A
Color: Stainless Steel
Dimensions: 6-1/2 in H x 7-1/2 in W x 5 in L x 6 in D
Frequency Rating: 60 Hz
Manufacturer Name: Taco
Maximum Head: 33 ft
Maximum Pressure: 150 psi
Motor Speed: 3250 rpm
Mounting Type: Flange
Power Rating: 1/6 hp
Series: 00
Type: Stainless Steel
Includes: Flange Gaskets
Application: For Radiant Heating Systems, Domestic Water Systems, Chilled Water Cooling, Zoning with Circulators, Hydro-Air Fan Coils and Hydronic Heating System
Warranty: 3 Years
Country of Origin: US
Standards and Approvals: UL-CUS
Item Features
- Cast Iron or Stainless Steel Construction
- Direct Drive-Low Power consumption
- Exclusive ACB Anti-Condensate Bafflewith Ambient Air Flow-Protects motorwindings against condensate buildup
- High velocity performance, compact design
- No Mechanical Seal
- Quiet, Efficient operation
- Self lubricating
- Unique Replaceable Cartridge design-field serviceable
- Unmatched reliability - Maintenance free
