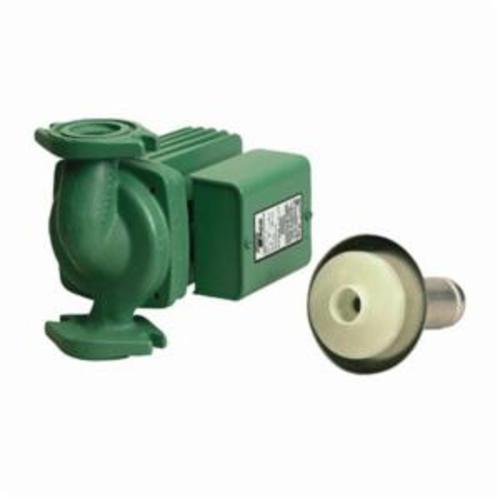

Taco® 0013-F3 13 Series Cast Iron Cartridge Circulator Pump, 34 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 115 V AC, 1 Phase
CBPN: 131309
MPN:0013-F3
DESCRIPTION
Taco® 0013-F3, Cartridge Circulator Pump, Cast Iron, Series: 13 Series, 34 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 33 ft Maximum Head, 1/6 hp Power, 115 V AC, 2 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 7-1/2 in L x 6-1/2 in H Dimensions
The Taco® Model 0013 cartridge circulator is specifically designed for high-head/high-flow applications in large residential/light commercial systems. Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs. Available in cast iron or stainless steel construction stainless steel should be used on open-loop systems. Unique, 00 family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Universal flange-to-flange dimensions and orientation allow the 0013 to easily replace other models.
Taco® 0013-F3 13 Series Cast Iron Cartridge Circulator Pump, 34 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 115 V AC, 1 Phase
CBPN: 131309
MPN:0013-F3
DESCRIPTION
Taco® 0013-F3, Cartridge Circulator Pump, Cast Iron, Series: 13 Series, 34 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 33 ft Maximum Head, 1/6 hp Power, 115 V AC, 2 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 7-1/2 in L x 6-1/2 in H Dimensions
The Taco® Model 0013 cartridge circulator is specifically designed for high-head/high-flow applications in large residential/light commercial systems. Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs. Available in cast iron or stainless steel construction stainless steel should be used on open-loop systems. Unique, 00 family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Universal flange-to-flange dimensions and orientation allow the 0013 to easily replace other models.
Specifications
Item Features
- Exclusive ACB anti-condensate baffle with ambient air flow-protects motor windings against condensate buildup
- Universal flange to flange dimensions
- Non-ferrous ACB baffle
- Stator housing
- Non metallic impeller
- Ceramic shaft
- Carbon bearings
- EPDM O-ring and gaskets
- Cast Iron or Stainless Steel Construction
- Direct Drive-Low Power consumption
- High velocity performance, compact design
- No Mechanical Seal
- Quiet, Efficient operation
- Self lubricating
- Unique Replaceable Cartridge design-field serviceable
- Unmatched reliability - Maintenance free
