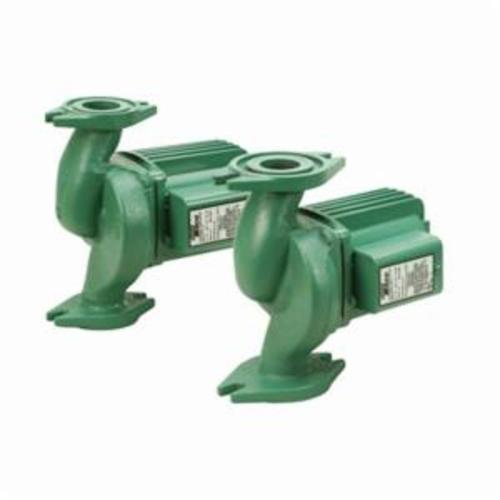

Taco® 0012-F4 12 Series Cast Iron Cartridge Circulator Pump, 50 gpm Flow Rate, 1-1/2 in Inlet x 1-1/2 in Outlet, 115 V AC, 1 Phase , Domestic
CBPN: 306741
MPN:0012-F4
DESCRIPTION
Taco® 0012-F4, Cartridge Circulator Pump, Cast Iron, Series: 12 Series, 50 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, 14-1/2 ft Maximum Head, 1/8 hp Power, 115 V AC, 1.33 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 8-5/8 in L x 8-1/2 in H Dimensions, Domestic
The High Velocity series Taco® 0012 cartridge circulator is designed for high flow/medium head applications in large residential/light commercial hydronic heating, Radiant heating and chilled water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0012 is ideal for high efficiency jobs where space is a premium. Available in cast iron or bronze construction.
Taco® 0012-F4 12 Series Cast Iron Cartridge Circulator Pump, 50 gpm Flow Rate, 1-1/2 in Inlet x 1-1/2 in Outlet, 115 V AC, 1 Phase , Domestic
CBPN: 306741
MPN:0012-F4
DESCRIPTION
Taco® 0012-F4, Cartridge Circulator Pump, Cast Iron, Series: 12 Series, 50 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, 14-1/2 ft Maximum Head, 1/8 hp Power, 115 V AC, 1.33 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 8-5/8 in L x 8-1/2 in H Dimensions, Domestic
The High Velocity series Taco® 0012 cartridge circulator is designed for high flow/medium head applications in large residential/light commercial hydronic heating, Radiant heating and chilled water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0012 is ideal for high efficiency jobs where space is a premium. Available in cast iron or bronze construction.
Specifications
Item Features
- Unique, 00 family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit
- Universal flange-to-flange dimensions and orientation allow the 0012 to easily replace other models
- High velocity performance-compact design quiet, efficient operation
- Cast Iron or bronze case
- Aluminum stator housing
- Non metallic impeller
- Stainless steel cartridge
- Ceramic shaft
- Carbon bearings
- EPDM O-ring and gaskets
- Direct Drive-Low Power Consumption
- Exclusive ACB Anti-Condensate Baffle withAmbient Air Flow-Protects Motor Windingsagainst Condensate Buildup
- No Mechanical Seal
- Self Lubricating
- Unique Replaceable Cartridge Design-Field Serviceable
- Unmatched Reliability-Maintenance Free
