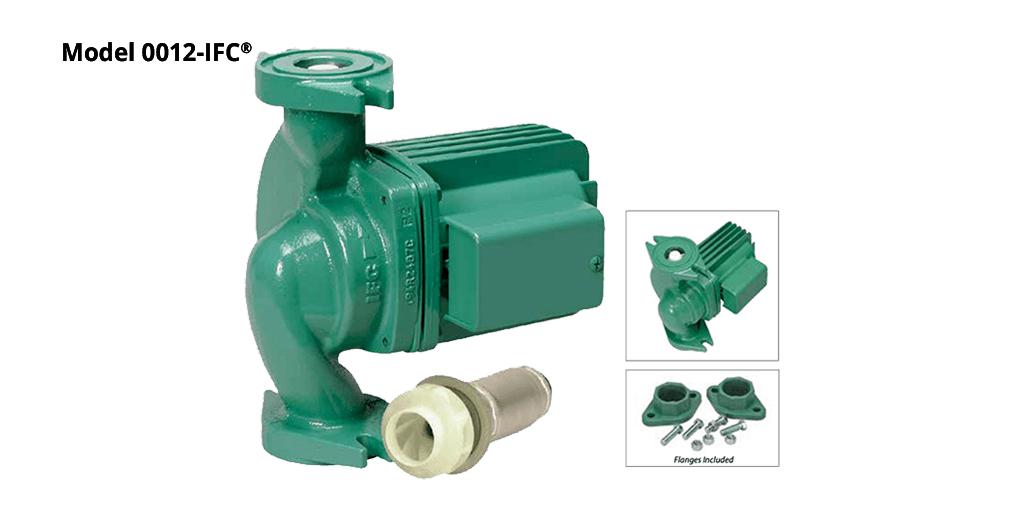

Taco® 0012-F4-IFC 00 Stainless Steel Cartridge Circulator, 42 gpm Flow Rate, 1-1/2 in Inlet x 1-1/2 in Outlet, 115 V, 1 Phase, Domestic
CBPN: 306744
MPN:0012-F4-IFC
DESCRIPTION
Taco® 0012-F4-IFC, Cartridge Circulator, Stainless Steel, Series: 00, 42 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, 13 ft Maximum Head, 1/8 hp Power, 115 V, 1.33 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 8-1/2 in H x 6 in W x 8-1/16 in D Dimensions, Domestic
The Taco 0012-IFC with Integral Flow Check (IFC® ) is designed to reduce installation costs when zoning with 00® circulators on high flow / medium head applications in large residential and light commercial systems. Ideal for large BTUH Boilers, 2 in recirculation loops, primary/secondary loops, commercial water heaters and light commercial heating and cooling systems. The Stainless Steel 0012-IFC can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator.
Taco® 0012-F4-IFC 00 Stainless Steel Cartridge Circulator, 42 gpm Flow Rate, 1-1/2 in Inlet x 1-1/2 in Outlet, 115 V, 1 Phase, Domestic
CBPN: 306744
MPN:0012-F4-IFC
DESCRIPTION
Taco® 0012-F4-IFC, Cartridge Circulator, Stainless Steel, Series: 00, 42 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, 13 ft Maximum Head, 1/8 hp Power, 115 V, 1.33 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 8-1/2 in H x 6 in W x 8-1/16 in D Dimensions, Domestic
The Taco 0012-IFC with Integral Flow Check (IFC® ) is designed to reduce installation costs when zoning with 00® circulators on high flow / medium head applications in large residential and light commercial systems. Ideal for large BTUH Boilers, 2 in recirculation loops, primary/secondary loops, commercial water heaters and light commercial heating and cooling systems. The Stainless Steel 0012-IFC can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator.
Specifications
Item Features
- Integral Flow Check Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, easy to service, Improved performance vs. In-line flow checks
- Unique replaceable cartridge-Field serviceable
- Unmatched reliability-Maintenance free
- Quiet, efficient operation
- Direct drive-Low power consumption
- Self lubricating, No mechanical seal
- Standard high capacity output
