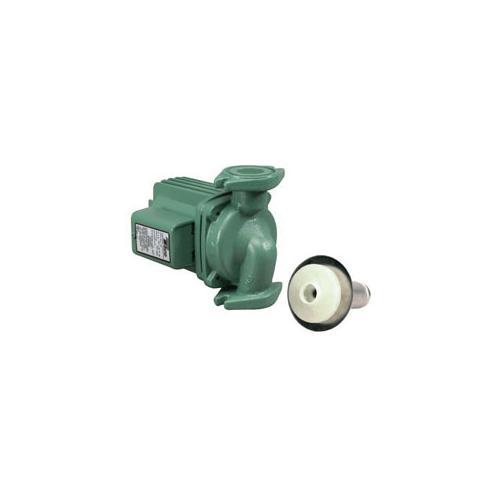

Taco® 0011-F4 11 Series High Velocity Cartridge Circulator, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet x 3/4, 1-1/4, 1, 1-1/2 in Outlet, 115 VAC, 1 Phase
CBPN: 52680
MPN:0011-F4
DESCRIPTION
Taco® 0011-F4, Cartridge Circulator, High Velocity, Series: 11 Series, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 3/4, 1-1/4, 1, 1-1/2 in Outlet, 31 ft Maximum Head, 1/8 hp Power, 115 VAC, 1.76 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 5-5/8 in W x 7-1/2 in D x 6-1/2 in H Dimensions
The Taco® 0011 is specifically designed for high head/medium flow applications in large residential or light commercial closed loop hydronic heating and chilled water cooling systems. Ideal for high pressure drop boilers, fan coil units, heat exchangers, large radiant heating and heat recovery/geothermal systems. The stainless steel 0011 can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0011 to easily replace other models. Compact, low power consumption design makes it ideal for high efficiency jobs.
Taco® 0011-F4 11 Series High Velocity Cartridge Circulator, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet x 3/4, 1-1/4, 1, 1-1/2 in Outlet, 115 VAC, 1 Phase
CBPN: 52680
MPN:0011-F4
DESCRIPTION
Taco® 0011-F4, Cartridge Circulator, High Velocity, Series: 11 Series, 31 gpm Flow Rate, 3/4, 1-1/4, 1, 1-1/2 in Inlet, 3/4, 1-1/4, 1, 1-1/2 in Outlet, 31 ft Maximum Head, 1/8 hp Power, 115 VAC, 1.76 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 5-5/8 in W x 7-1/2 in D x 6-1/2 in H Dimensions
The Taco® 0011 is specifically designed for high head/medium flow applications in large residential or light commercial closed loop hydronic heating and chilled water cooling systems. Ideal for high pressure drop boilers, fan coil units, heat exchangers, large radiant heating and heat recovery/geothermal systems. The stainless steel 0011 can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0011 to easily replace other models. Compact, low power consumption design makes it ideal for high efficiency jobs.
Specifications
Item Features
- Exclusive ACB anti-condensate baffle with ambient air flow-Protects motor windings against condensate buildup
- For indoor use only
- Low-lead compliant
- Construction: cast Iron casing (volute), aluminum stator housing, stainless steel cartridge, non-metallic impeller, ceramic shaft, carbon bearings, EPDM O-ring and gaskets
- Impedance protected permanent split capacitor motor
- 3/4, 1, 1-1/4, 1-1/2 in flanged connection
- High velocity performance, compact design
- Quiet, Efficient operation
- Direct drive-Low power consumption
- Unique replaceable cartridge design, field serviceable
- Self lubricating
- No mechanical seal
- Unmatched reliability-maintenance free
- Universal flange to flange dimensions
