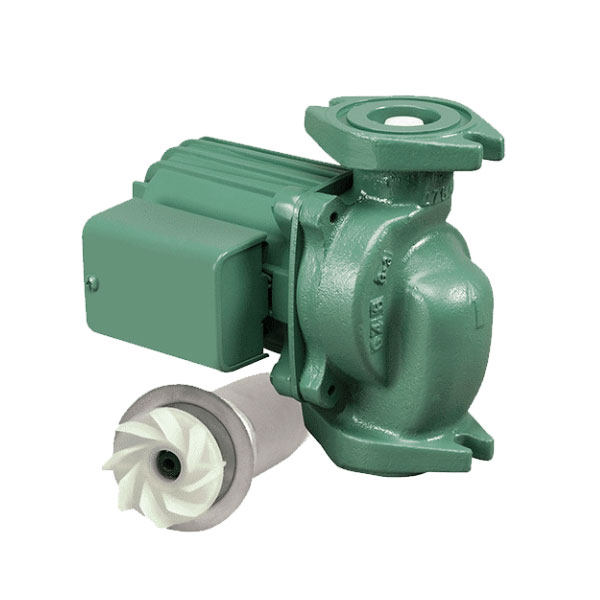

Taco® 0010-F3-1IFC Cartridge Circulator with Integral Flow Check, 00 Series, Cast Iron Casing, Standard Flange End Connection, 30 gpm Flow Rate, 115 V, 1 Phase
CBPN: 306732
MPN:0010-F3-1IFC
DESCRIPTION
Taco® 0010-F3-1IFC, Cartridge Circulator with Integral Flow Check, Cast Iron, Series: 00, Model: 0010, 30 gpm Flow Rate, 9 ft Maximum Head, 1/8 hp Power, 115 V, 1.1 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5-3/8 in W x 7-1/4 in D Dimensions
The 0010-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00circulators. Ideal for residential or light commercial hydronic or radiant heating, hydro-air fan coils, indirect water heaters or domestic water recirculation systems. By locating the IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC increases the flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit.
Taco® 0010-F3-1IFC Cartridge Circulator with Integral Flow Check, 00 Series, Cast Iron Casing, Standard Flange End Connection, 30 gpm Flow Rate, 115 V, 1 Phase
CBPN: 306732
MPN:0010-F3-1IFC
DESCRIPTION
Taco® 0010-F3-1IFC, Cartridge Circulator with Integral Flow Check, Cast Iron, Series: 00, Model: 0010, 30 gpm Flow Rate, 9 ft Maximum Head, 1/8 hp Power, 115 V, 1.1 Amps, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Standard 2-Bolt Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5-3/8 in W x 7-1/4 in D Dimensions
The 0010-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00circulators. Ideal for residential or light commercial hydronic or radiant heating, hydro-air fan coils, indirect water heaters or domestic water recirculation systems. By locating the IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC increases the flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit.
Specifications
Item Features
- Cast Iron or Stainless Steel construction, Flanged connections
- Direct drive - Low power consumption
- Integral Flow Check Prevents gravity flow Eliminates separate in-line flow check Reduces installed cost, easy to service Improved performance vs. In-line flow checks
- Quiet, efficient operation
- Self lubricating, No mechanical seal
- Standard high capacity output - Compact design
- Unique replaceable cartridge-Field serviceable
- Unmatched reliability - Maintenance free
- Wide range of applications
