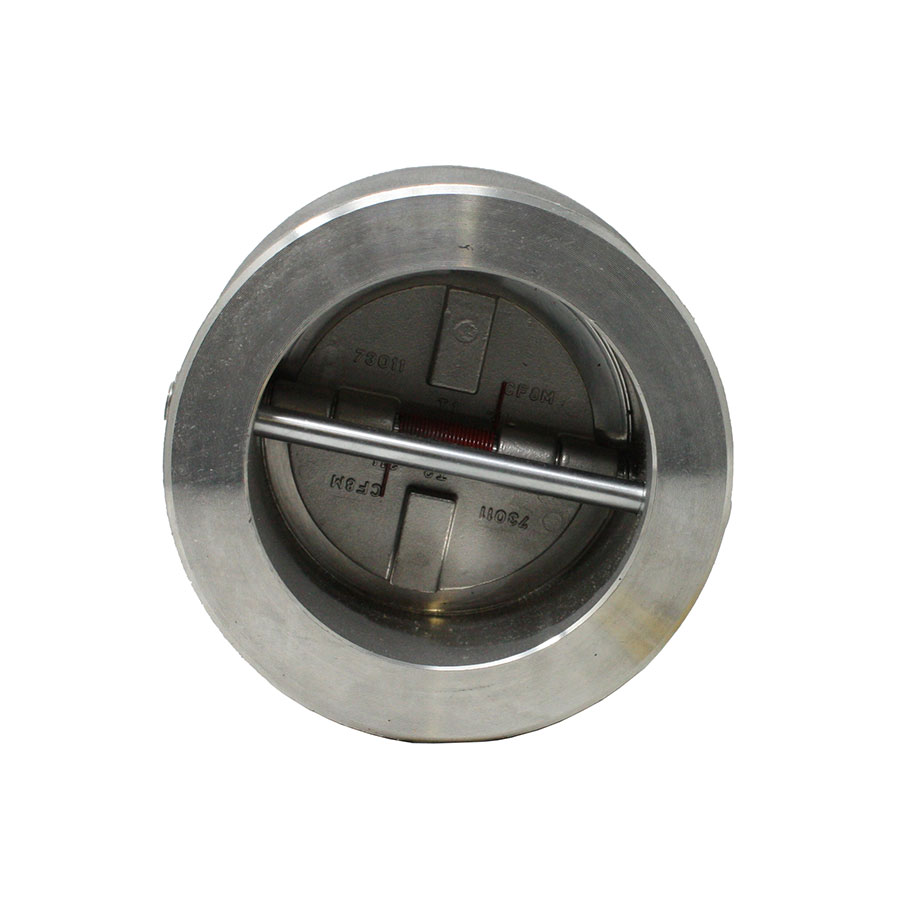

Spirax Sarco SDCV44 Split Disc Check Valve

Spirax Sarco 72908F, SDCV44 Split Disc Check Valve, 2 in, Flanged, Austenitic Stainless Steel Body, Stainless Steel Disc, Stainless Steel Seat

CBPN: 104299

MPN:72908F

Price:
$1071.98 / EA

DESCRIPTION

Spirax Sarco Check Valve, Split Disc, 2 in Nominal, Flanged, 720 psig, -20 to 650 deg F, Media: Steam/Water, 2.2 in Inlet to Outlet Length, Austenitic Stainless Steel Body, Metal Seat Trim, 4.1 in H

A range of austenitic stainless steel split disc check valves in a wafer pattern suitable for fitting between ANSI Class 150 and class 300 flanges. Their function is to prevent reverse flow on a wide variety of fluids for applications in process lines, hot water systems, steam and condensate systems. The face-to-face dimension of the SDCV44 conforms to API 594. As standard the valve has a metal-to-metal seat.

Spirax Sarco 72908F, SDCV44 Split Disc Check Valve, 2 in, Flanged, Austenitic Stainless Steel Body, Stainless Steel Disc, Stainless Steel Seat

CBPN: 104299

MPN:72908F

Price:
$1071.98 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Check Valve, Split Disc, 2 in Nominal, Flanged, 720 psig, -20 to 650 deg F, Media: Steam/Water, 2.2 in Inlet to Outlet Length, Austenitic Stainless Steel Body, Metal Seat Trim, 4.1 in H

A range of austenitic stainless steel split disc check valves in a wafer pattern suitable for fitting between ANSI Class 150 and class 300 flanges. Their function is to prevent reverse flow on a wide variety of fluids for applications in process lines, hot water systems, steam and condensate systems. The face-to-face dimension of the SDCV44 conforms to API 594. As standard the valve has a metal-to-metal seat.

Specifications

Brand: Spirax Sarco
Weight: 4.2 lbs
Nominal Size: 2 in
End Style: Flanged
Body Material: Stainless Steel
Seat Material: Stainless Steel
Disc Material: Stainless Steel
Dimensions: 4.1 in H
Inlet to Outlet Length: 2.2 in
Manufacturer Name: Spirax-Sarco Inc
Media: Steam/Water
Pressure Rating: 720 psig
Temperature Rating: -20 to 650 deg F
Trim Material: Metal Seat
Type: Split Disc
Standards and Approvals: ASTM A351 CF8M Body | European Pressure Equipment Directive 2014/68/EU

Item Features

  • Effective minimal maintenance free solutions
  • Preventing reverse flow in pipelines
  • Compact design
  • Designed for a maximum cold hydraulic test pressure of 1475 psig
  • ANSI 150/300 flanged connection
