Spirax Sarco 1289592 STS17.2 Compact Pipeline Connector Steam Trapping Station, 1 in Nominal, ANSI 150 Flange Connection, 200 psig Pressure, 10.7 in Face To Face, Stainless Steel
CBPN: 198328
MPN:1289592
DESCRIPTION
Spirax Sarco Pipeline Connector Steam Trapping Station, Compact, 1 in Nominal, ANSI 150 Flange, 10.7 in Face To Face, 200 psig, 446 deg F, Stainless Steel, 10.7 in L
The STS17.2 steam trap station has been designed to provide a convenient "ready-to-install" trapping solution which has an upstream isolation valve, a universal connector with strainer, a check valve and a downstream isolation valve.
Specifications
Item Features
- Quick and simple maintenance of the steam trap with simple two-bolt connector, reducing system downtime and maintenance costs compared to traditional trapping stations
- Single permanent in-line component, ease of specification and installation
- Pre-assembled construction minimizing on-site fabrication, quick and easy installation, no screwed connections therefore reducing potential leak paths
- All stainless steel construction, long and trouble-free life with good corrosion resistance and cleanliness
- Compatible steam trap options providing flexible supply and selection
- An in-trap sensing option providing automatic steam trap operation indication
- Note: All certification/inspection requirements must be stated at the time of order placemen
- Single upstream isolation configuration
- Maximum allowable pressure: 580 psig at 248 deg F
- Maximum allowable temperature: 446 deg F at 145 psig
- Designed for a maximum cold hydraulic test pressure of 870 psig
- Maximum allowable/operating temperature: 446 deg F at 145 psig
- Minimum allowable/operating temperature: 14 deg F
Resources

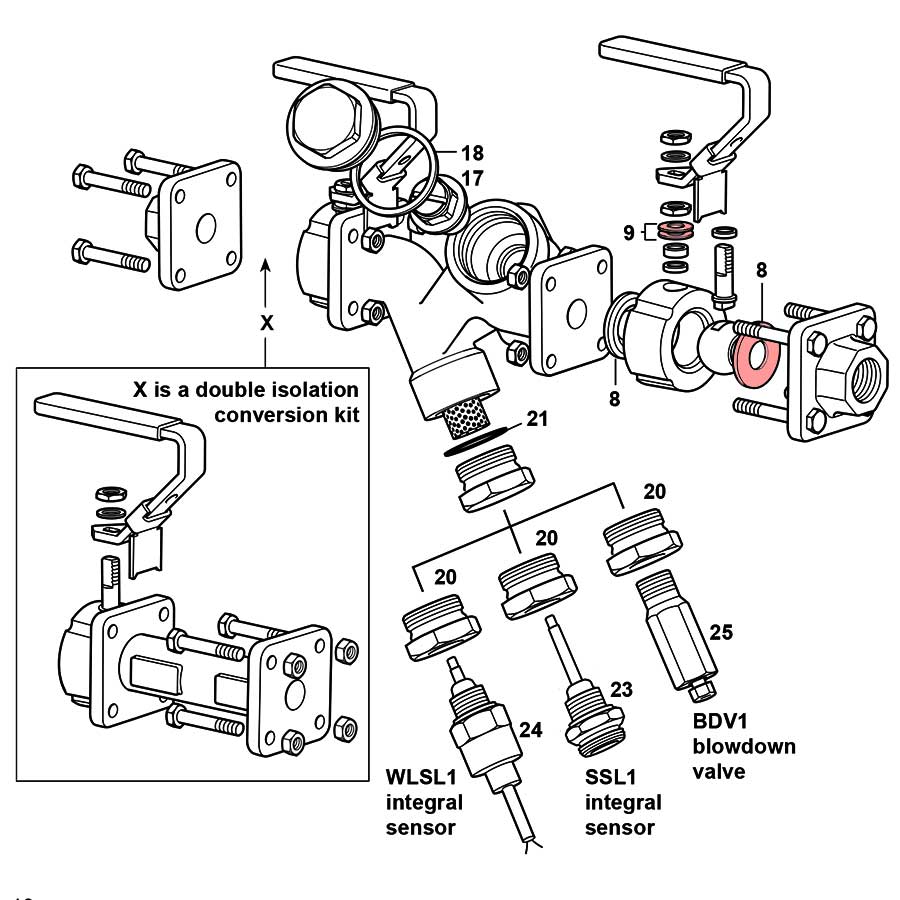

Spirax Sarco 1289592 Spare Parts
CBPN:
238925
MPN:
1530080
CBPN:
202752
MPN:
6903042
CBPN:
239441
MPN:
6140483
CBPN:
239956
MPN:
1289047
CBPN:
239964
MPN:
1289042
CBPN:
239438
MPN:
6140482
CBPN:
198329
MPN:
6140485
CBPN:
238926
MPN:
1289080
CBPN:
239437
MPN:
6140484
CBPN:
74533
MPN:
1534080
CBPN:
239439
MPN:
6140481
CBPN:
239436
MPN:
6140480
