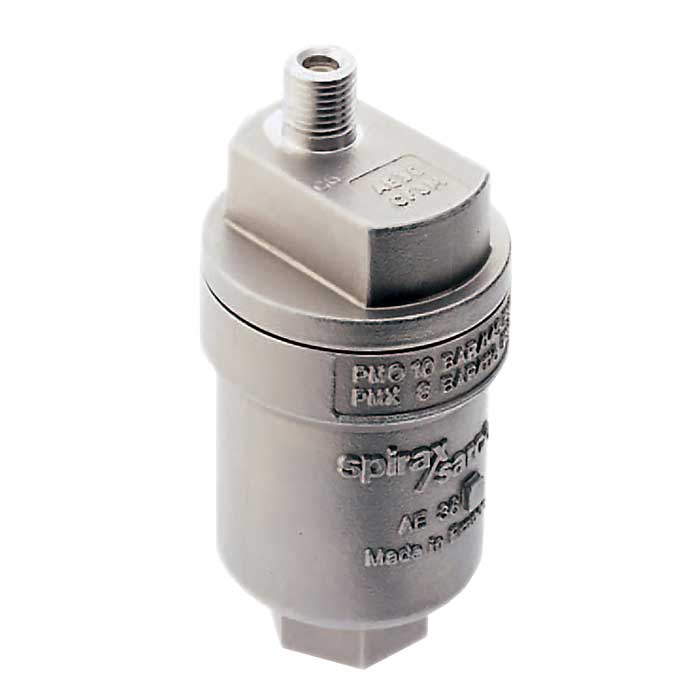

Spirax Sarco 0170590 AE36A Automatic Air Eliminator, 1/2 x 1/4 in, FNPT x MNPT Connection, 10 bar Pressure, 110 deg C, Stainless Steel
CBPN: 86417
MPN:0170590
Price:
$725.27 / EA
DESCRIPTION
Spirax Sarco Air Eliminator, Automatic, 1/2 x 1/4 in, FNPT x MNPT, 10 bar, 110 deg C, Stainless Steel
The AE36 range of automatic air eliminators/air vents is designed for use on hot and cold water installations, and in data centers. The body and cap are of austenitic stainless steel type 316L. It is available as a standard air vent designated AE36, with check valve the designation becomes AE36A.
Spirax Sarco 0170590 AE36A Automatic Air Eliminator, 1/2 x 1/4 in, FNPT x MNPT Connection, 10 bar Pressure, 110 deg C, Stainless Steel
CBPN: 86417
MPN:0170590
Price:
$725.27 / EA
DESCRIPTION
Spirax Sarco Air Eliminator, Automatic, 1/2 x 1/4 in, FNPT x MNPT, 10 bar, 110 deg C, Stainless Steel
The AE36 range of automatic air eliminators/air vents is designed for use on hot and cold water installations, and in data centers. The body and cap are of austenitic stainless steel type 316L. It is available as a standard air vent designated AE36, with check valve the designation becomes AE36A.
Specifications
Brand: Spirax Sarco
Weight: 1.5 lbs
Size: 1/2 x 1/4 in
Connection Type: MNPT X FNPT
Pressure Rating: 10 bar
Temperature Rating: 110 deg C
Material: Stainless Steel
Manufacturer Name: Spirax-Sarco Inc
Type: Automatic
Country of Origin: US
Standards and Approvals: ASTM A351 CF3M Body | European Pressure Equipment Directive 97/23/EC
Item Features
- 10 in H
- For liquid systems
- PN10 body design conditions
- Maximum allowable pressure: 10 barg at 150 deg C
- Maximum allowable temperature: 150 deg C at 10 barg
- Minimum allowable temperature: -10 deg C
- Minimum operating temperature: -10 deg C
- 8 barg maximum differential pressure
- Designed for a maximum cold hydraulic test pressure of 15 barg
- 0.926 minimum specific gravity of liquid
Resources
Spirax Sarco 0170590 Spare Parts
CBPN:
66265
MPN:
0170380
In Stock: 11
Price:
$233.87 / EA
