Spears® 6013-060 Globe Valve, 6 in Nominal, Flanged End Style, PVC Body, Handwheel Actuator, Domestic
CBPN:261165
UPC:054211000281
MPN:6013-060
DESCRIPTION

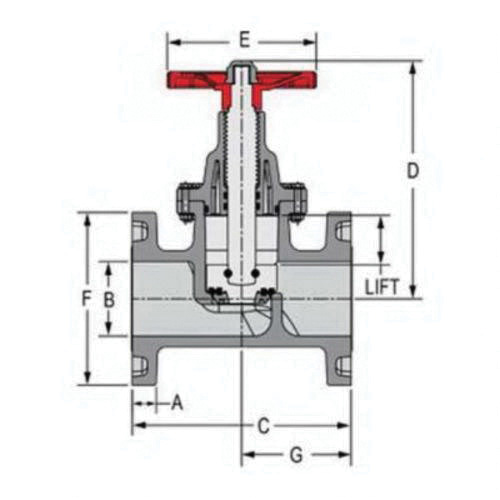

Spears® Globe Valve, 6 in Nominal, Flanged End Style, 150 psi Pressure, 140 deg F, Handwheel Actuator, 16-1/4 in Inlet to Outlet Length, 17-7/8 in Top to Inlet Center, PVC Body, Buna-N® O-Ring Softgoods, 11 in Diameter Hand Wheel, Gray, Domestic
Spears® globe valves provide close throttling control throughout the entire range of operation through positive shutoff. This makes the globe valve an excellent choice for throttling applications where pressure drop is not critical. Valves are available in PVC and CPVC materials in larger IPS sizes of 2-1/2 in through 6 in with flanged end connections.
Spears® 6013-060 Globe Valve, 6 in Nominal, Flanged End Style, PVC Body, Handwheel Actuator, Domestic
CBPN:261165
MPN:6013-060
UPC:054211000281
DESCRIPTION
Spears® Globe Valve, 6 in Nominal, Flanged End Style, 150 psi Pressure, 140 deg F, Handwheel Actuator, 16-1/4 in Inlet to Outlet Length, 17-7/8 in Top to Inlet Center, PVC Body, Buna-N® O-Ring Softgoods, 11 in Diameter Hand Wheel, Gray, Domestic
Spears® globe valves provide close throttling control throughout the entire range of operation through positive shutoff. This makes the globe valve an excellent choice for throttling applications where pressure drop is not critical. Valves are available in PVC and CPVC materials in larger IPS sizes of 2-1/2 in through 6 in with flanged end connections.
Specifications
Item Features
- Excellent throttling characteristics
- Chemical and corrosion resistant PVC or CPVC construction
- Fully serviceable in-line with factory assembled internal repair kit
- Suitable for vacuum service
- Assembled with silicone free, water soluble lubricant
