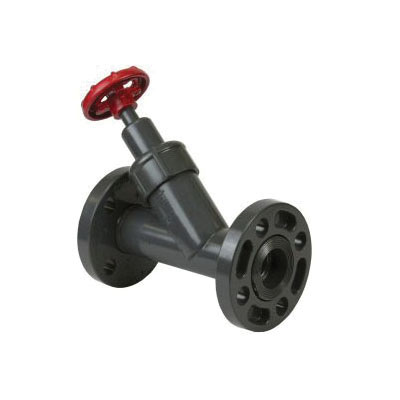

Spears® Y-Pattern Valve, 4 in Nominal, Flanged End Style, 90 psi Pressure, 200 deg F, Handwheel Actuator, 6-7/16 in Inlet to Outlet Length, 15-5/8 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM/FKM O-Ring Softgoods, 7-15/16 in Diameter Hand Wheel, Gray, Domestic

The Y-Pattern valve is a closing-down, globe type valve design that provides proportional opening to seating disc travel. As such, Y-Pattern valves are ideally suited for flow regulating applications. The Y-pattern configuration reduces pressure loss over that of standard globe valves. Available in IPS Sizes 1/2 - 4 in with socket, SR threaded, flanged, socket union or SR threaded union end connectors.
