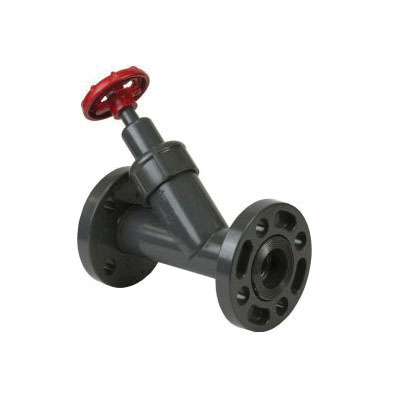

Spears® 1723-015C Y-Pattern Valve, 1-1/2 in Nominal, Flanged End Style, CPVC Body, Handwheel Actuator, Domestic
CBPN: 237578
UPC:054211311240
MPN:1723-015C
DESCRIPTION
Spears® Y-Pattern Valve, 1-1/2 in Nominal, Flanged End Style, 150 psi Pressure, 200 deg F, Handwheel Actuator, 6-7/16 in Inlet to Outlet Length, 7-1/2 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM/FKM O-Ring Softgoods, 3-1/2 in Diameter Hand Wheel, Gray, Domestic
The Y-Pattern valve is a closing-down, globe type valve design that provides proportional opening to seating disc travel. As such, Y-Pattern valves are ideally suited for flow regulating applications. The Y-pattern configuration reduces pressure loss over that of standard globe valves. Available in IPS Sizes 1/2 - 4 in with socket, SR threaded, flanged, socket union or SR threaded union end connectors.
Spears® 1723-015C Y-Pattern Valve, 1-1/2 in Nominal, Flanged End Style, CPVC Body, Handwheel Actuator, Domestic
CBPN: 237578
MPN:1723-015C
UPC:054211311240
DESCRIPTION
Spears® Y-Pattern Valve, 1-1/2 in Nominal, Flanged End Style, 150 psi Pressure, 200 deg F, Handwheel Actuator, 6-7/16 in Inlet to Outlet Length, 7-1/2 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM/FKM O-Ring Softgoods, 3-1/2 in Diameter Hand Wheel, Gray, Domestic
The Y-Pattern valve is a closing-down, globe type valve design that provides proportional opening to seating disc travel. As such, Y-Pattern valves are ideally suited for flow regulating applications. The Y-pattern configuration reduces pressure loss over that of standard globe valves. Available in IPS Sizes 1/2 - 4 in with socket, SR threaded, flanged, socket union or SR threaded union end connectors.
Specifications
Item Features
- Chemical and corrosion resistant PVC gray, PVC clear or CPVC construction
- Buttress thread bonnet
- Fully serviceable, replaceable components
- Standard o-ring seal seating disc and seals
- High impact polypropylene handle
- Assembled with silicone free, water soluble lubricant
