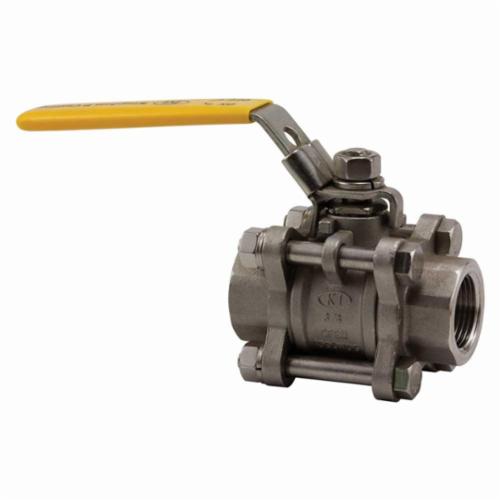

Merit Brass KV310FP-32 K Series 3-Piece Ball Valve, 2 in Nominal, FNPT End Style, 1000 lb, 316 Stainless Steel Body, Full Port, Import
CBPN: 195537
UPC:671404122362
MPN:KV310FP-32
Price:
$228.27 / EA
DESCRIPTION
Merit Brass Ball Valve, 3-Piece, Series: K Series, 2 in Nominal, FNPT, 1000 lb, Full Port, Media: Gas/Oil/Water, Lever Operated Actuator, 316 Stainless Steel Ball, 5.51 in Inlet to Outlet Length, 4.11 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem and PTFE Ball Seat Trim, 1.97 in Dia, Import
Merit Brass KV310FP-32 K Series 3-Piece Ball Valve, 2 in Nominal, FNPT End Style, 1000 lb, 316 Stainless Steel Body, Full Port, Import
CBPN: 195537
MPN:KV310FP-32
UPC:671404122362
Price:
$228.27 / EA
DESCRIPTION
Merit Brass Ball Valve, 3-Piece, Series: K Series, 2 in Nominal, FNPT, 1000 lb, Full Port, Media: Gas/Oil/Water, Lever Operated Actuator, 316 Stainless Steel Ball, 5.51 in Inlet to Outlet Length, 4.11 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem and PTFE Ball Seat Trim, 1.97 in Dia, Import
Specifications
Brand: Merit Brass
Weight: 9.149 lbs
Nominal Size: 2 in
End Style: FNPT
Pressure Class: 1000 lb
Body Material: 316 Stainless Steel
Port Type: Full
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Dimensions: 1.97 in Dia
Inlet to Outlet Length: 5.51 in
Manufacturer Name: Merit Brass
Media: Gas/Oil/Water
Series: K Series
Top to Inlet Center: 4.11 in
Trim Material: 316 Stainless Steel Stem and PTFE Ball Seat
Type: 3-Piece
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: ASME B16.34/MSS SP-110 Design | ASME B1.20.1 Pipe Thread | EN 12516-3 Wall Thickness | MSS SP-110 Inspection and Testing
Item Features
- Blow-out proof stem
- Pressure balance hole ball slot
- Castings approved by TUV AD 2000-Merkblatt W0
- A193-B8 bolt, stainless steel 304 locking device/lever/stem washer/gland nut/bolt washer, vinyl plastic lever sleeve, A194-8 bolt nut, CF8M/CF8 WCB cap
