Merit Brass KV210FP-08

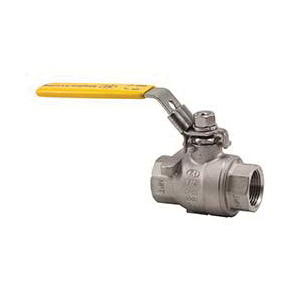

Merit Brass KV210FP-08 K Series 2-Piece KI-Pattern Ball Valve With Handle, 1/2 in Nominal, FNPT End Style, 1000 lb, 316 Stainless Steel Body, Full Port, PTFE Softgoods, Import

CBPN:1773

UPC:671404105730

MPN:KV210FP-08

Price:
$31.82 / EA

DESCRIPTION

Merit Brass Ball Valve, 2-Piece KI-Pattern, Series: K Series, 1/2 in Nominal, FNPT, 1000 lb Pressure Class, Full Port, Media: Gas/Oil/Water, 0.59 in Orifice, 2.44 in Inlet to Outlet Length, 2.28 in Top to Inlet Center, 316 Stainless Steel Body, 304/316 Stainless Steel Stem Trim, PTFE Softgoods, Import

Merit Brass KV210FP-08 K Series 2-Piece KI-Pattern Ball Valve With Handle, 1/2 in Nominal, FNPT End Style, 1000 lb, 316 Stainless Steel Body, Full Port, PTFE Softgoods, Import

CBPN:1773

MPN:KV210FP-08

UPC:671404105730

Price:
$31.82 / EA

Merit Brass Logo

DESCRIPTION

Merit Brass Ball Valve, 2-Piece KI-Pattern, Series: K Series, 1/2 in Nominal, FNPT, 1000 lb Pressure Class, Full Port, Media: Gas/Oil/Water, 0.59 in Orifice, 2.44 in Inlet to Outlet Length, 2.28 in Top to Inlet Center, 316 Stainless Steel Body, 304/316 Stainless Steel Stem Trim, PTFE Softgoods, Import

Specifications

BrandMerit Brass
Weight0.749 lbs
Nominal Size1/2 in
End StyleFNPT
Pressure Class1000 lb
Body MaterialStainless Steel
Port TypeFull
Softgoods MaterialPTFE
Inlet to Outlet Length2.44 in
Manufacturer NameMerit Brass
MediaGas/Oil/Water
Orifice Size0.59 in
SeriesK Series
Top to Inlet Center2.28 in
Trim Material304/316 Stainless Steel Stem
Type2-Piece KI-Pattern
Domestic/ImportImport
Country of OriginCN
Standards and ApprovalsASME B16.34/MSS SP-110 Design | ASME B1.20.1 Pipe Thread | EN 12516-3 Wall Thickness | MSS SP-110 Inspection and Testing | Castings approved by TUV AD 2000-Merkblatt W0

Item Features

  • Blow-out proof stem
  • Pressure balance hole ball slot
  • PTFE body gasket/thrust washer
