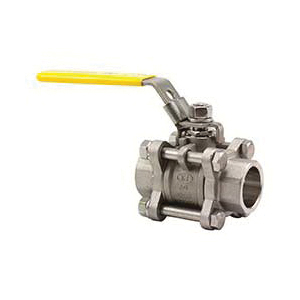

Merit Brass KSWV310FP-20 K Series 3-Piece KI-Pattern Ball Valve, 1-1/4 in Nominal, Socket Weld End Style, 1000 lb, 316 Stainless Steel Body, Full Port, PTFE Softgoods, Import
CBPN:262472
UPC:671404122096
MPN:KSWV310FP-20
Price:
$130.27 / EA
DESCRIPTION
Merit Brass Ball Valve, 3-Piece KI-Pattern, Series: K Series, 1-1/4 in Nominal, Socket Welded End Style, 1000 lb Pressure Class, Full Port, Media: Gas/Oil/Water, 1.26 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 4.33 in Inlet to Outlet Length, 3.19 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem Trim, PTFE Softgoods, Domestic/Import: Import
Merit Brass KSWV310FP-20 K Series 3-Piece KI-Pattern Ball Valve, 1-1/4 in Nominal, Socket Weld End Style, 1000 lb, 316 Stainless Steel Body, Full Port, PTFE Softgoods, Import
CBPN:262472
MPN:KSWV310FP-20
UPC:671404122096
Price:
$130.27 / EA
DESCRIPTION
Merit Brass Ball Valve, 3-Piece KI-Pattern, Series: K Series, 1-1/4 in Nominal, Socket Welded End Style, 1000 lb Pressure Class, Full Port, Media: Gas/Oil/Water, 1.26 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 4.33 in Inlet to Outlet Length, 3.19 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem Trim, PTFE Softgoods, Domestic/Import: Import
Specifications
Brand: Merit Brass
Weight: 4.056 lbs
Nominal Size: 1-1/4 in
End Style: Socket Weld
Pressure Class: 1000 lb
Body Material: 316 Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.33 in
Manufacturer Name: Merit Brass
Media: Gas/Oil/Water
Orifice Size: 1.26 in
Series: K Series
Top to Inlet Center: 3.19 in
Trim Material: 316 Stainless Steel Stem
Type: 3-Piece KI-Pattern
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: ASME B16.34/MSS SP-110 Design | ASME B1.20.1 Pipe Thread | EN 12516-3 Wall Thickness | MSS SP-110 Inspection and Testing | Castings approved by TUV AD 2000-Merkblatt W0
Standards
ASME B16.34/MSS SP-110 Design|ASME B1.20.1 Pipe Thread|EN 12516-3 Wall Thickness|MSS SP-110 Inspection and Testing|Castings approved by TUV AD 2000-Merkblatt W0Item Features
- Blow-out proof stem
- Pressure balance hole ball slot
- PTFE thrust washer/body gasket
