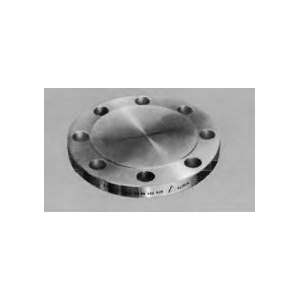

Merit Brass A535BL-08 Raised Face Blind Flange, 1/2 in, 304/304L Stainless Steel, 300 lb, Import
CBPN: 22189
UPC:671404049478
MPN:A535BL-08
Pricing Available Upon Request
DESCRIPTION
Merit Brass Blind Flange, Raised Face, 1/2 in Nominal, 0.56 in Thickness, 2.62 in Bolt Circle, 4 Bolt Holes, 0.62 in, 3-3/4 in Outside Dia, 300 lb, 1-1/2 in Hub Dia, Forged 304/304L Stainless Steel, Import
Merit Brass A535BL-08 Raised Face Blind Flange, 1/2 in, 304/304L Stainless Steel, 300 lb, Import
CBPN: 22189
MPN:A535BL-08
UPC:671404049478
Pricing Available Upon Request
DESCRIPTION
Merit Brass Blind Flange, Raised Face, 1/2 in Nominal, 0.56 in Thickness, 2.62 in Bolt Circle, 4 Bolt Holes, 0.62 in, 3-3/4 in Outside Dia, 300 lb, 1-1/2 in Hub Dia, Forged 304/304L Stainless Steel, Import
Specifications
Brand: Merit Brass
Weight: 1.556 lbs
Nominal Size: 1/2 in
Material: 304/304L Stainless Steel
Pressure Class: 300 lb
Bolt Circle Diameter: 2.62 in
Bolt Hole Size: 0.62 in
Hub Diameter: 1-1/2 in
Manufacturer Name: Merit Brass
Number of Bolt Holes: 4
Outside Diameter: 3-3/4 in
Thickness: 0.56 in
Type: Raised Face
Domestic/Import: Import
Country of Origin: IN
Standards and Approvals: ANSI B16.5 | ASME SA182 | ASTM A182
