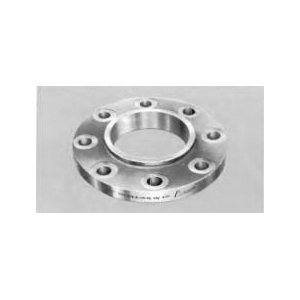

Merit Brass A435-80 Raised Face Pipe Flange, 5 in Nominal, 304/304L Stainless Steel, FNPT Connection, 150 lb, Import
CBPN: 43250
UPC:671404047917
MPN:A435-80
Price:
$310.24 / EA
DESCRIPTION
Merit Brass Pipe Flange, Raised Face, 5 in Nominal, 0.94 in Thickness, 8-1/2 in Diameter Bolt Circle, 8 Bolt Holes, 0.88 in Bolt Hole, Thread Connection, 10 in OD, 150 lb Pressure Class, 6.44 in Diameter Hub, 1.44 in Length Through Hub, Forged 304/304L Stainless Steel, Domestic/Import: Import
Merit Brass A435-80 Raised Face Pipe Flange, 5 in Nominal, 304/304L Stainless Steel, FNPT Connection, 150 lb, Import
CBPN: 43250
MPN:A435-80
UPC:671404047917
Price:
$310.24 / EA
DESCRIPTION
Merit Brass Pipe Flange, Raised Face, 5 in Nominal, 0.94 in Thickness, 8-1/2 in Diameter Bolt Circle, 8 Bolt Holes, 0.88 in Bolt Hole, Thread Connection, 10 in OD, 150 lb Pressure Class, 6.44 in Diameter Hub, 1.44 in Length Through Hub, Forged 304/304L Stainless Steel, Domestic/Import: Import
Specifications
Brand: Merit Brass
Weight: 15.43 lbs
Nominal Size: 5 in
Material: 304/304L Stainless Steel
Connection Type: FNPT
Pressure Class: 150 lb
Bolt Circle Diameter: 8-1/2 in
Bolt Hole Size: 0.88 in
Hub Diameter: 6.44 in
Length Through Hub: 1.44 in
Manufacturer Name: Merit Brass
Number of Bolt Holes: 8
Outside Diameter: 10 in
Thickness: 0.94 in
Type: Raised Face
Domestic/Import: Import
Country of Origin: IN
Standards and Approvals: ANSI B16.5 | ASME SA182 | ASTM A182
