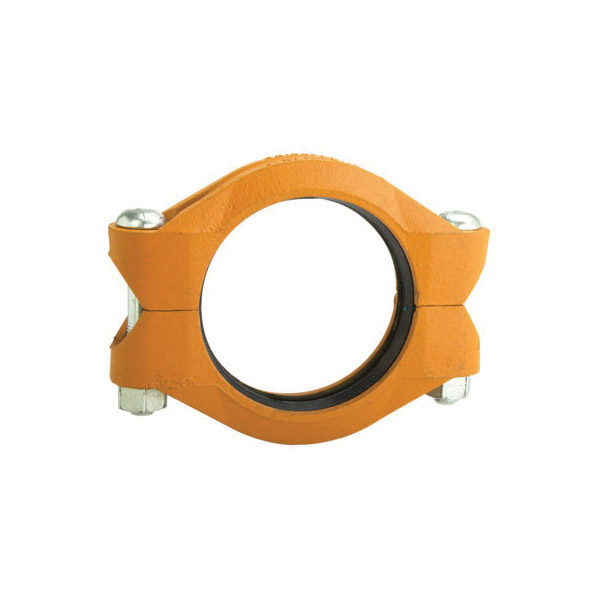

Gruvlok® 1330017710 FIG 770 High Pressure Rigid Coupling With Nitrile Gasket, 10 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted
CBPN: 297093
UPC:662428958952
MPN:1330017710
DESCRIPTION
Gruvlok® Rigid Coupling, Lead Free High Pressure, Series: FIG 770, Fitting/Connector Type: Coupling, 10 in Nominal, Grooved, 16 in Length, 800 psi, Ductile Iron, Non-Lead Orange Painted, -20 to 180 deg F, 10.75 in OD x 2.6 in D x 13.46 in H
The FIG 770 Rigid Coupling provides a rigid joint by firmly gripping along the circumference of the pipe grooves. This coupling offers a dependable method for joining pipe and is an economical alternative to welding, threading, or using flanges. It is capable of pressures up to 1000 psi (68.9 bar) depending on pipe size and wall thickness.
Gruvlok® 1330017710 FIG 770 High Pressure Rigid Coupling With Nitrile Gasket, 10 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Orange Painted
CBPN: 297093
MPN:1330017710
UPC:662428958952
DESCRIPTION
Gruvlok® Rigid Coupling, Lead Free High Pressure, Series: FIG 770, Fitting/Connector Type: Coupling, 10 in Nominal, Grooved, 16 in Length, 800 psi, Ductile Iron, Non-Lead Orange Painted, -20 to 180 deg F, 10.75 in OD x 2.6 in D x 13.46 in H
The FIG 770 Rigid Coupling provides a rigid joint by firmly gripping along the circumference of the pipe grooves. This coupling offers a dependable method for joining pipe and is an economical alternative to welding, threading, or using flanges. It is capable of pressures up to 1000 psi (68.9 bar) depending on pipe size and wall thickness.
Specifications
Item Features
- Full 360 deg gripping of the groove circumference provides a strong rigid connection
- Tongue-and-groove design simplifies installation
- Recommended for petroleum applications, air with oil vapors and vegetable and mineral oils
- Not for use in hot water or hot air
