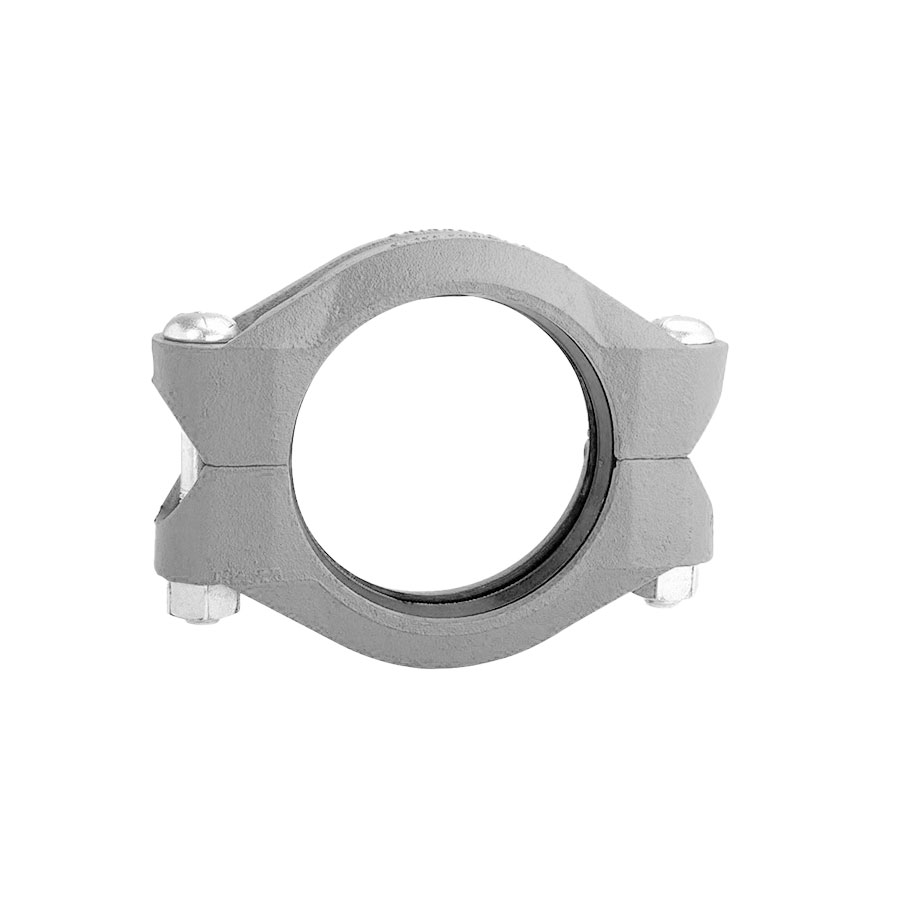

Gruvlok® 1330017565 FIG 770 High Pressure Rigid Coupling With EPDM Gasket, 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Galvanized
CBPN: 297035
UPC:662428958662
MPN:1330017565
DESCRIPTION
Gruvlok® Rigid Coupling, High Pressure, Series: FIG 770, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, Grooved, 6 in Length, 1000 psi, Ductile Iron, Hot Dipped Galvanized, -30 to 230 deg F, 2.875 in OD x 1.88 in D x 4.06 in H
The FIG 770 Rigid Coupling provides a rigid joint by firmly gripping along the circumference of the pipe grooves. This coupling offers a dependable method for joining pipe and is an economical alternative to welding, threading, or using flanges. It is capable of pressures up to 1000 psi (68.9 bar) depending on pipe size and wall thickness.
Gruvlok® 1330017565 FIG 770 High Pressure Rigid Coupling With EPDM Gasket, 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Galvanized
CBPN: 297035
MPN:1330017565
UPC:662428958662
DESCRIPTION
Gruvlok® Rigid Coupling, High Pressure, Series: FIG 770, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, Grooved, 6 in Length, 1000 psi, Ductile Iron, Hot Dipped Galvanized, -30 to 230 deg F, 2.875 in OD x 1.88 in D x 4.06 in H
The FIG 770 Rigid Coupling provides a rigid joint by firmly gripping along the circumference of the pipe grooves. This coupling offers a dependable method for joining pipe and is an economical alternative to welding, threading, or using flanges. It is capable of pressures up to 1000 psi (68.9 bar) depending on pipe size and wall thickness.
Specifications
Item Features
- Full 360 deg gripping of the groove circumference provides a strong rigid connection
- Tongue-and-groove design simplifies installation
- Recommended for water service, diluted acids, alkalies solutions, oil-free air and many chemical services
- Not for use in petroleum application
