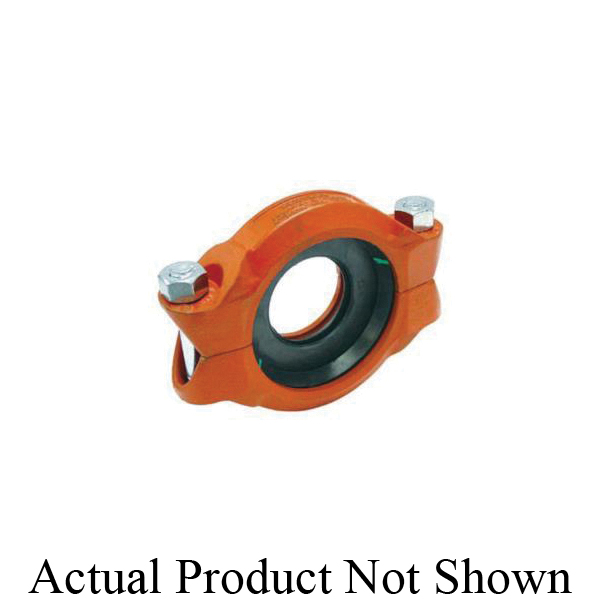

Gruvlok® 0390111680 FIG 7010 Reducing Coupling With EPDM Gasket, 3 x 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Galvanized, Domestic
CBPN: 120124
UPC:690291111532
MPN:0390111680
DESCRIPTION
Gruvlok® Pipe Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 3 x 2-1/2 in Nominal, Grooved End Style, 1-7/8 in Thickness, 500 psi Pressure, Ductile Iron, Galvanized, -40 to 250 deg F, 2-7/8 To 3-1/2 in OD Dimensions, Domestic
The Fig. 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 Reducing Coupling allows for working pressure ratings up to 500 PSI (34.5 bar). Not recommended for vacuum applications.
Gruvlok® 0390111680 FIG 7010 Reducing Coupling With EPDM Gasket, 3 x 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Galvanized, Domestic
CBPN: 120124
MPN:0390111680
UPC:690291111532
DESCRIPTION
Gruvlok® Pipe Reducing Coupling, Series: FIG 7010, Reducing Coupling Fitting/Connector, 3 x 2-1/2 in Nominal, Grooved End Style, 1-7/8 in Thickness, 500 psi Pressure, Ductile Iron, Galvanized, -40 to 250 deg F, 2-7/8 To 3-1/2 in OD Dimensions, Domestic
The Fig. 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 Reducing Coupling allows for working pressure ratings up to 500 PSI (34.5 bar). Not recommended for vacuum applications.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- 4811 lb max end load
