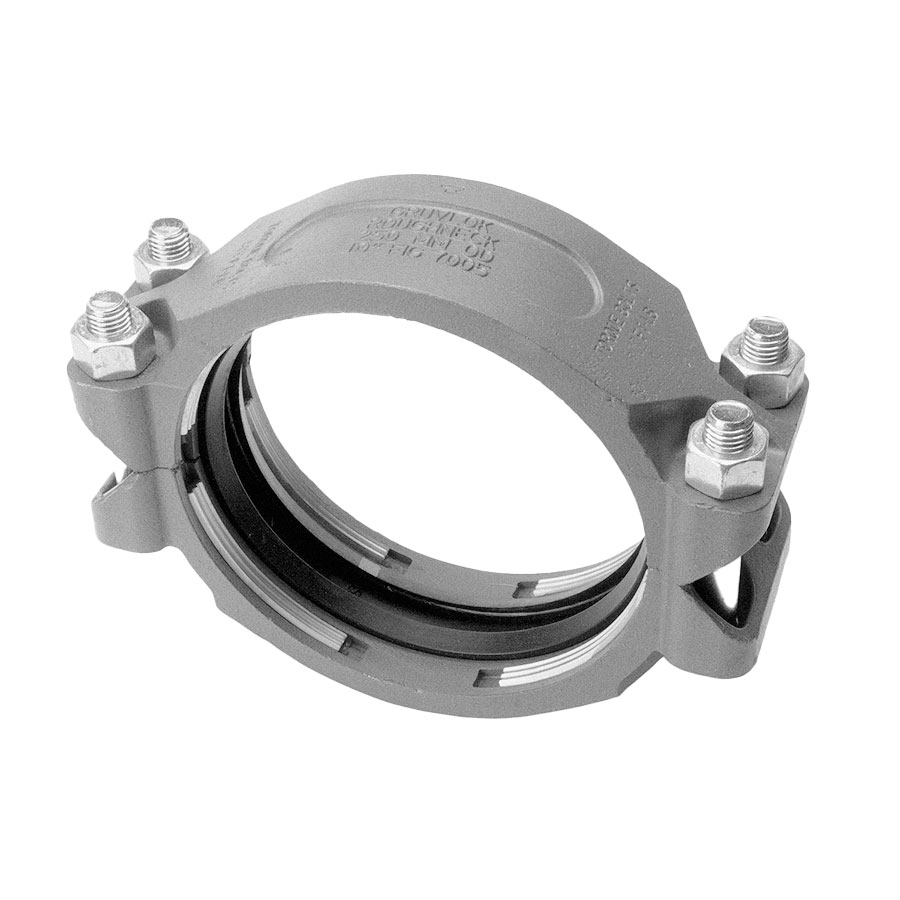

Gruvlok® Roughneck® 0390100121 FIG 7005 Coupling With EPDM Gasket, 3 in Nominal, Plain End Style, Ductile Iron, Galvanized, Domestic
CBPN: 58436
UPC:690291111341
MPN:0390100121
DESCRIPTION
Gruvlok® Pipe Coupling, Series: FIG 7005, Fitting/Connector Type: Coupling, 3 in Nominal, Plain, 3-1/2 in Thickness, 600 psi, Ductile Iron, Galvanized, 3-1/2 in OD, Domestic
The Fig. 7005 Roughneck® Coupling is an effective and reliable way of joining plain-end or beveled end pipe. The Roughneck® Coupling is ideal for use in a variety of applications including mining, process piping, manifold piping and oilfield services. The unique gripper action provides a positive pipe joint and allows for working pressure ratings up to 750 psi (52 bar) for schedule 40 pipe.
Gruvlok® Roughneck® 0390100121 FIG 7005 Coupling With EPDM Gasket, 3 in Nominal, Plain End Style, Ductile Iron, Galvanized, Domestic
CBPN: 58436
MPN:0390100121
UPC:690291111341
DESCRIPTION
Gruvlok® Pipe Coupling, Series: FIG 7005, Fitting/Connector Type: Coupling, 3 in Nominal, Plain, 3-1/2 in Thickness, 600 psi, Ductile Iron, Galvanized, 3-1/2 in OD, Domestic
The Fig. 7005 Roughneck® Coupling is an effective and reliable way of joining plain-end or beveled end pipe. The Roughneck® Coupling is ideal for use in a variety of applications including mining, process piping, manifold piping and oilfield services. The unique gripper action provides a positive pipe joint and allows for working pressure ratings up to 750 psi (52 bar) for schedule 40 pipe.
Specifications
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- (2) 3/4 x 4-1/2 in coupling bolts
- 200 to 250 ft-lb specified torque
- (8) grippers
- 5773 lb max end load
- SAE J429, grade 5, zinc electroplated bolts
- ASTM A563, Grade A, zinc electroplated heavy hex nuts
